18 in. 3-CCT linkable under-cabinet light
800 lumens · 3000K soft white
Zone · Kitchen & home lights · 12 in. 3-CCT linkable under-cabinet light

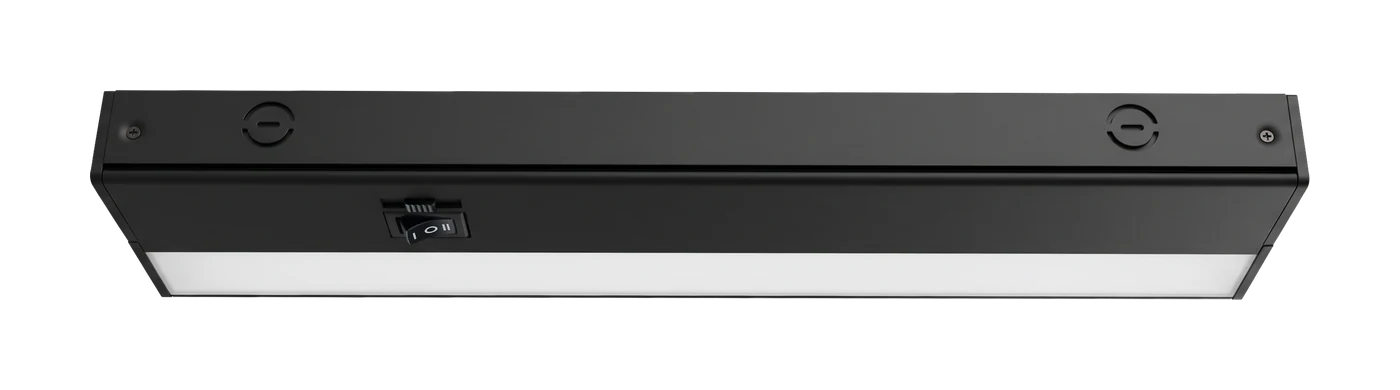

Zone 12 in. 3-CCT linkable under-cabinet light — Black 12 inch linkable under-cabinet LED light viewed at an angle. Shown on a colour field at 3000K · Soft white.
Who it's for / where it goes
The twelve-inch 3-CCT bar is for a short under-cabinet run in the home where you want a choice of hardwired or plug-in power. It links end to end, so it can be considered around cabinet divisions rather than forcing one longer bar across an obstructed underside.
Check before you buy
- Size and fit. Published size: 12 in. Measure the usable underside of the cabinet, including trim and dividers, then allow space for the connectors and power route. The twelve-inch nominal size is published, but full width, depth and connector clearances are not. Ask for those measurements before fitting it behind a shallow face frame.
- Brightness. A little less bright than a 60-watt household bulb (640 lumens).
- Power and installation. Hardwired or plug-in. Choose an outlet connection or a fixed wiring installation. Electrical rating: 8 W. Cord: 5 ft (plug-in). Supply: 120 V AC, 60 Hz.
- Location. Dry, indoor locations.
- Controls. 3 colour settings. Dimming: Compatible with wall dimmers. Linking: Yes, up to 200 W in total.
Specifications, as printed
| Size | 12 in |
| Delivered lumens | 640 lm |
| Colour temperature | 3000K · Soft white |
| Watts | 8 W |
| Voltage | 120 V AC, 60 Hz |
| Power | Hardwired or plug-in |
| Dimmable | Compatible with wall dimmers |
| Linkable | Yes, up to 200 W in total |
| Location | Dry, indoor locations |
| Cord | 5 ft (plug-in) |
Unpublished: listing marks. Ask about Z-UCL-LD-B0412.
Questions buyers ask
Can one long bar replace several shorter bars?
A longer bar only helps if the cabinet underside is continuous. This twelve-inch model may suit a short section, but its output is not published, so do not scale down the eighteen-inch model’s lumens. Compare each section’s actual dimensions and request this model’s output before deciding how many bars to use. Full guide: Under-cabinet lighting.
Can a dimmable bar use any wall dimmer?
The twelve-inch 3-CCT bar publishes dimming support, but does not identify compatible dimmer models or a minimum level here. Ask about the control you intend to use and whether you will plug in or hardwire the light. Those two supply options do not make every control arrangement equivalent. If several bars share a run, include all their exact model numbers in the question so the answer applies to the complete planned setup. Full guide: Under-cabinet lighting.
Can I work out how many lights fit under a watt limit?
Z-UCL-LD-B0412 publishes a total linking limit in watts, but its own wattage is not confirmed here. That leaves insufficient information to calculate an allowed count from this page. Ask for the twelve-inch model’s actual watts and the approved connection arrangements before ordering a row. Do not estimate its draw from the eighteen- or twenty-four-inch bar, and do not treat the linking limit as the wattage of one bar. Full guide: Linkable lights.
Compare with
All 25 kitchen & home lights →
24 in. 3-CCT linkable under-cabinet light
1,200 lumens · 3000K soft white
Linkable under-cabinet kit
3 bars
While stock lasts
12 in. hand-wave under-cabinet light
5 colour settings · 2700K warm white
| Product | Lumens | Power / watts | Published size | Location |
|---|---|---|---|---|
| 18 in. 3-CCT linkable under-cabinet lightZ-UCL-LD-B0418 | 800 lm | Hardwired or plug-in 10 W | 18 in | Dry, indoor locations |
| 24 in. 3-CCT linkable under-cabinet lightZ-UCL-LD-B0424 | 1,200 lm | Hardwired or plug-in 15 W | 24 in | Dry, indoor locations |
| Linkable under-cabinet kitZ-UCL-60 KIT | Not published — ask us | Connection not published — ask us Watts not published — ask us | 24 in + 18 in + 18 in | Not published — ask us |
| 12 in. hand-wave under-cabinet lightZ-UCL-2013-12IN | 300 lm | Plug-in transformer 5 W | 12 x 2.5 x 0.5 in | Indoor use only |
