3-panel garage light
3 panels · 5000K daylight
Zone · Garage & shop lights · 4-panel garage light

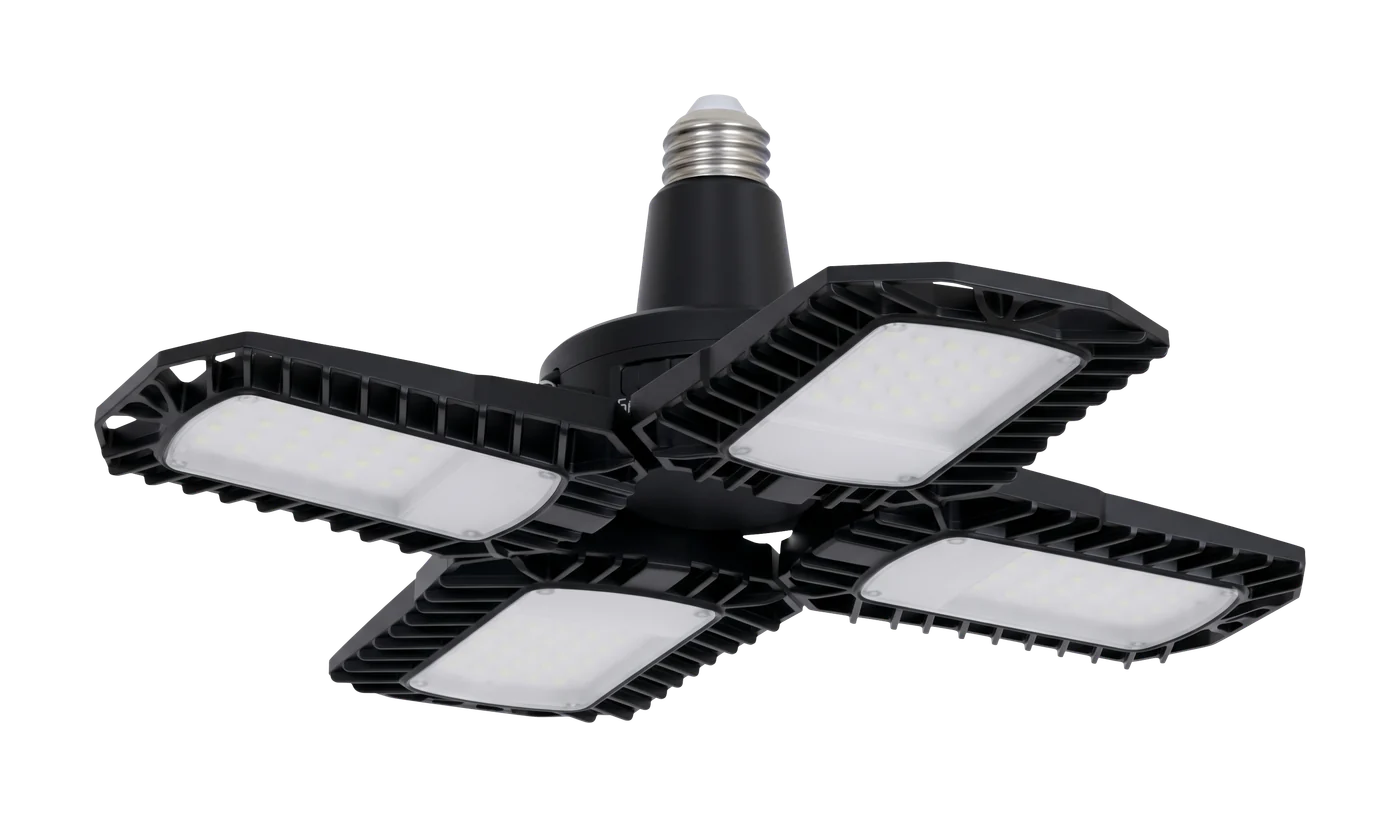

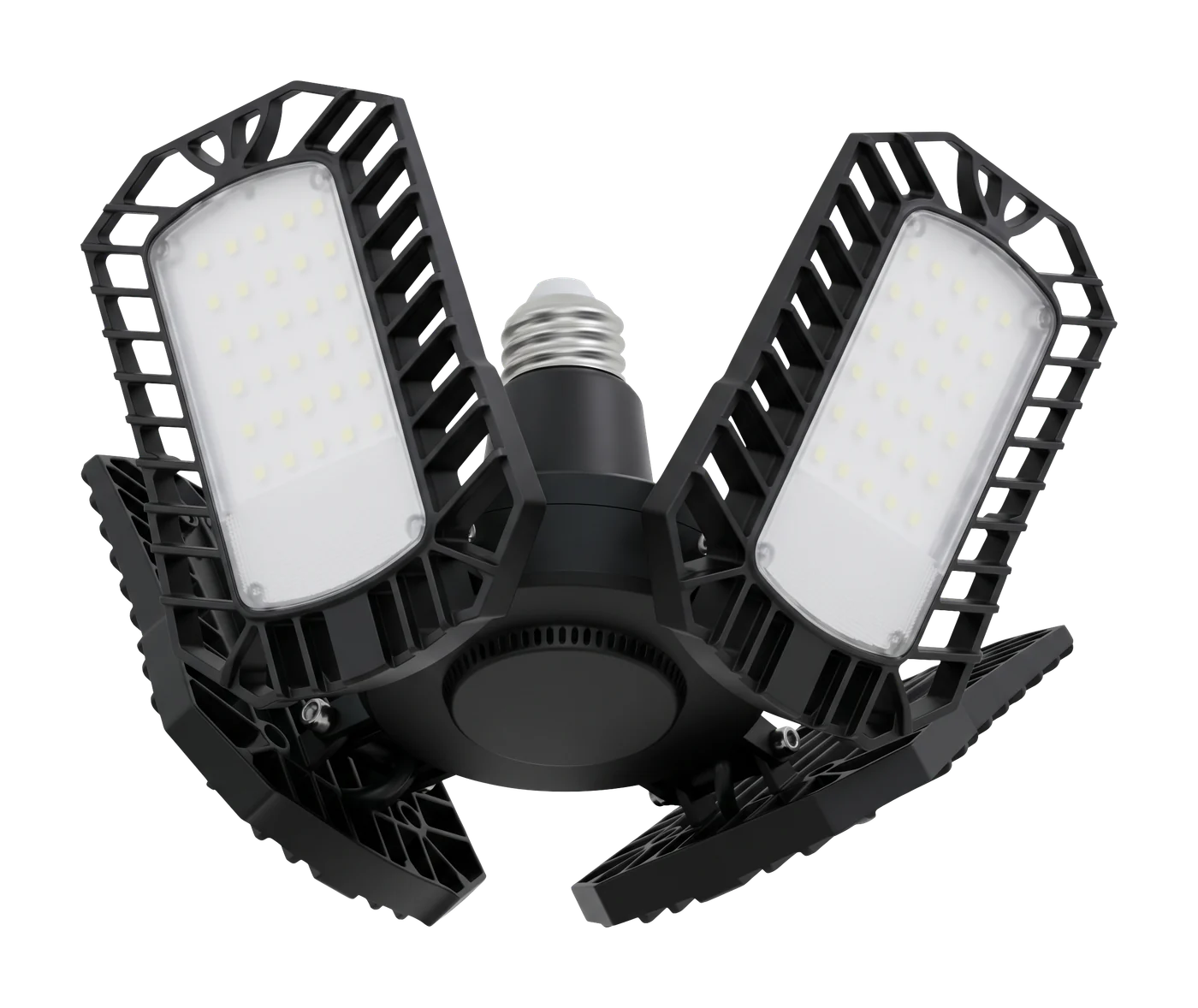

Zone 4-panel garage light — Four-panel LED garage light with E26 base. Shown on a colour field at 5000K · Daylight.
Who it's for / where it goes
The four-panel garage light is for a garage or workshop needing substantial output from a suitable existing E26 holder. Its adjustable panels let you aim different parts of the space, but the holder position still determines whether a door, tall cabinet or vehicle blocks the light.
Check before you buy
- Size and fit. Exact dimensions not published; ask us. Check the socket limits and measure room for all four panels in use. The holder is not included, and the working panel span is not published. Ask for those measurements before relying on a narrow ceiling recess or an area next to the garage-door mechanism. Ask about size and fit.
- Brightness. About as much light as 15 ordinary 60-watt household bulbs (12,000 lumens; an old 60-watt bulb gives about 800).
- Power and installation. E26 socket (screw-in). Check the socket, fixture limits and clearance before screwing it in. Electrical rating: 120 W. Supply: 120 V AC, 60 Hz.
- Location. Damp locations (covered, not exposed to water).
- Controls. Dimming: No, not for use with dimmers.
Specifications, as printed
| Delivered lumens | 12,000 lm |
| Colour temperature | 5000K · Daylight |
| Watts | 120 W |
| Voltage | 120 V AC, 60 Hz |
| Power | E26 socket (screw-in) |
| Dimmable | No, not for use with dimmers |
| Location | Damp locations (covered, not exposed to water) |
| Listing | ETL Listed |
Unpublished: size. Ask about Z-JG-120AL.
Questions buyers ask
Is a four-panel light always brighter than a three-panel light?
Panel count alone is not the brightness measure. This model’s published output is for the complete four-panel light, not each panel. Compare the whole-light lumen values in the table below and check actual watts. A sensor is not published for Z-JG-120AL, so do not inherit one from the motion model. Full guide: Deformable garage lights.
Will adjustable panels remove all shadows?
The four heads give Z-JG-120AL several aiming directions from one holder, but they cannot place light on the other side of a solid cabinet or vehicle. Check the open door position and stand where you normally work before selecting the socket location. Its whole-light lumen figure can help with a room estimate, while a separate task light may still be needed for detailed work behind an obstruction. Full guide: Deformable garage lights.
Can I dim these Zone panel models?
The four-panel model is explicitly not for use with dimmers. Do not select its substantial output expecting a wall dimmer to make it gentler later. Check the control already serving the holder and compare the actual wattage with that holder’s limit. The damp rating also has a covered, no-water-exposure condition, so electrical fit and location remain separate checks even when the E26 base matches. Full guide: Deformable garage lights.
Compare with
All 14 garage & shop lights →
Motion-activated 3-panel garage light
8,000 lumens · 5000K daylight
4 ft 2-light shop light
4 feet · 5000K daylight
4 ft integrated shop light
Integrated LED, no tubes · 5000K daylight
| Product | Lumens | Power / watts | Published size | Location |
|---|---|---|---|---|
| 3-panel garage lightZ-JG-80AL | 8,000 lm | E26 socket (screw-in) 80 W | Not published — ask us | Not published — ask us |
| Motion-activated 3-panel garage lightZ-JG-80AL-M | 8,000 lm | E26 socket (screw-in) 80 W | Not published — ask us | Damp locations (covered, not exposed to water) |
| 4 ft 2-light shop lightZF2208-SP | Not published — ask us | Plug-in cord, for a ceiling outlet Watts not published — ask us | 48.5 x 2.75 x 6.125 in | Dry locations, indoor use only |
| 4 ft integrated shop lightZ-B2003L | Not published — ask us | Connection not published — ask us Watts not published — ask us | 4 ft | Not published — ask us |
