4 ft LED shop lights: which type?

By the Zone product team

Updated October 18, 2026

Before wiring, turn off power at the breaker; follow local code; use a licensed electrician if unsure.

Zone 4 ft lights side by side

“Not published” means the product page doesn’t list it yet; it isn’t a “no”. We add watts, lumens, wiring and listing marks to each product page as its datasheet is confirmed, and we don’t estimate any of them.

Tube shop light or integrated LED?

A tube fixture holds LED tubes that can be replaced on their own. The 4 ft 2-light shop light (ZF2208-SP) uses two T8 LED tubes, sold separately. T8 is the tube size: one inch across. An integrated fixture has the LEDs built into the housing, so there is nothing to fit: the 4 ft integrated shop light (Z-B2003L) is published as “integrated LED, no tubes” with a pull chain on the fixture.

Strip lights and vapor-tight lights

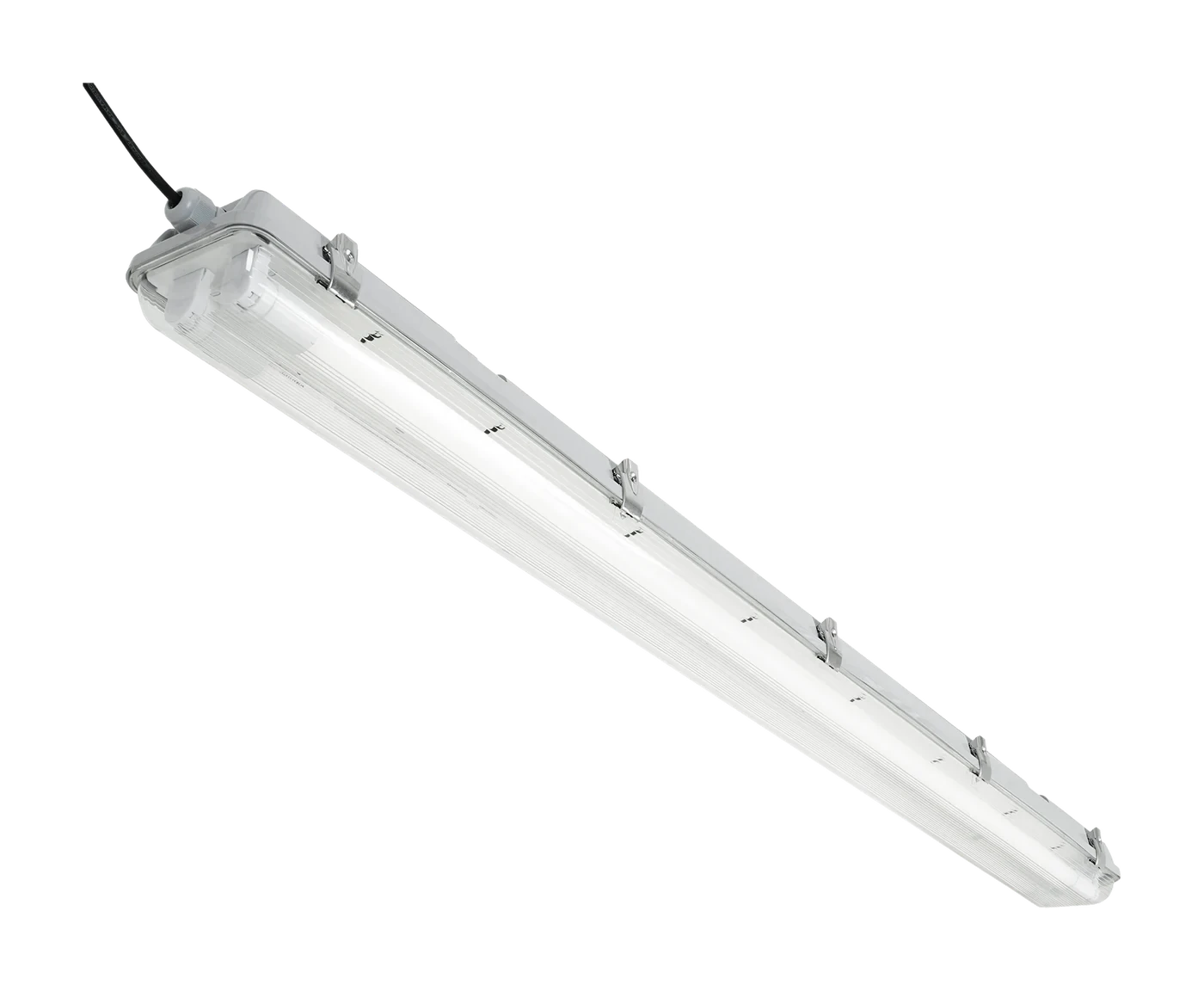

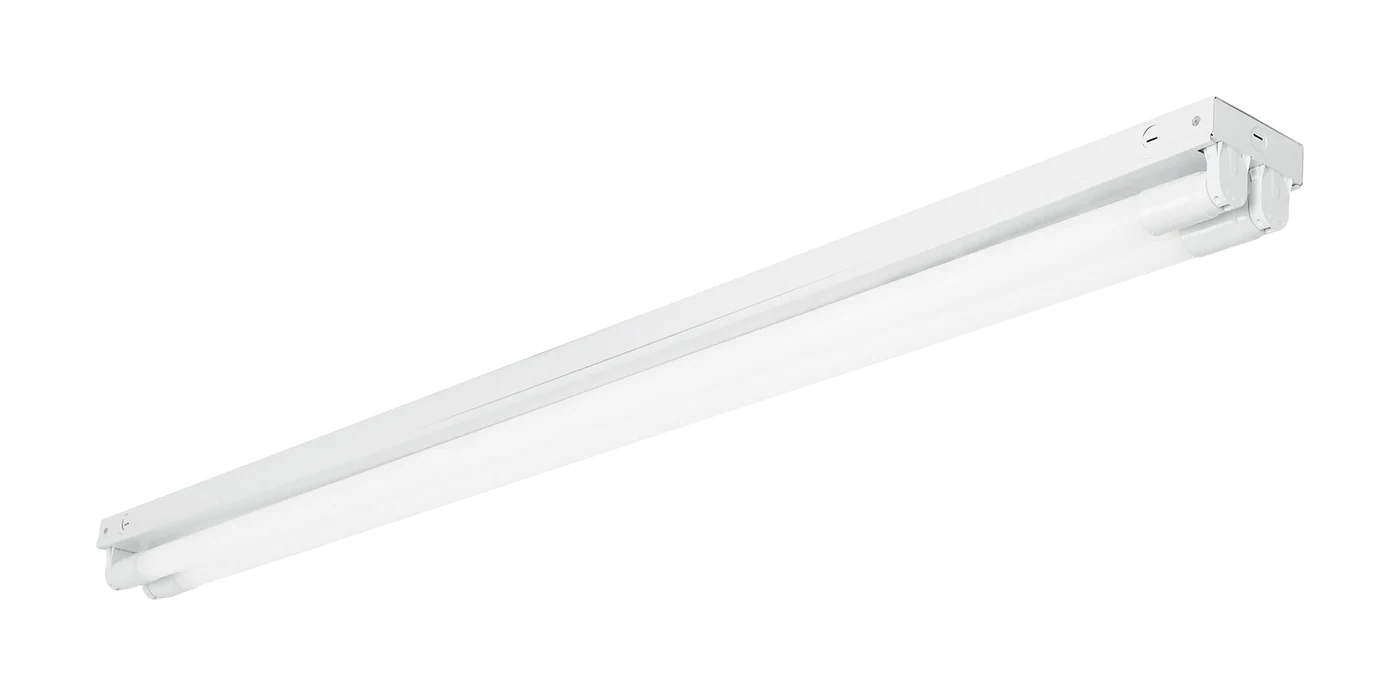

A strip light is a plain, open fixture for a ceiling or a beam: the 4 ft 2-light strip light (ZF2207-ST) is published as ballast-free, two lamps. A vapor-tight light has a sealed housing for spaces that get damp: the 4 ft vapor-tight light (Z-L2402-WBF) is published as “sealed housing, for damp spaces”.

Plug-in, hardwired or linkable?

A plug-in shop light has a cord and plugs into an outlet; a hardwired one connects to the building wiring, which is work for a qualified electrician; a linkable one powers the next light in a row. Of the Zone 4 ft lights, the ZF2208-SP is published as plugging in. The ZF2207-ST and Z-L2402-WBF records publish hardwired and hardwired connections respectively. Zone hasn’t published linking for these four models, so treat them as not linkable for now. For a specific model, ask at service@zoneledlighting.com.

Screw-in garage lights

These lights screw into a standard E26 bulb socket, the same one most household bulbs use. Check that your socket is E26, that there’s room for the light’s size and that the instructions suit your fixture:

• 5,000 lumen garage bulb (Z-TB50): 5,000 lm, 36 W.

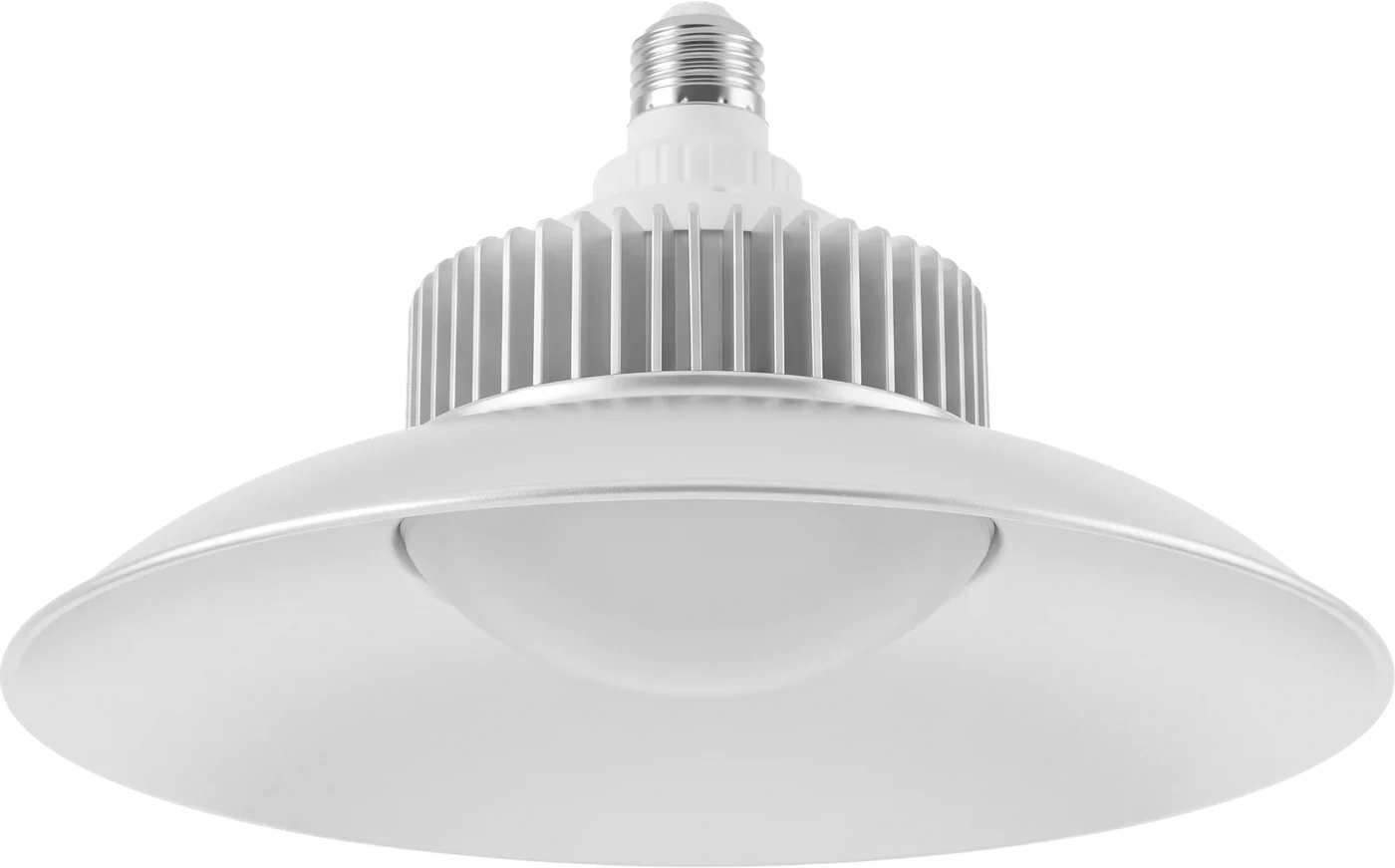

• Garage bulb with shade (Z-XL-GL50): 5,000 lm, 60 W.
• 3-panel garage light (Z-JG-80AL): 8,000 lm, 80 W.

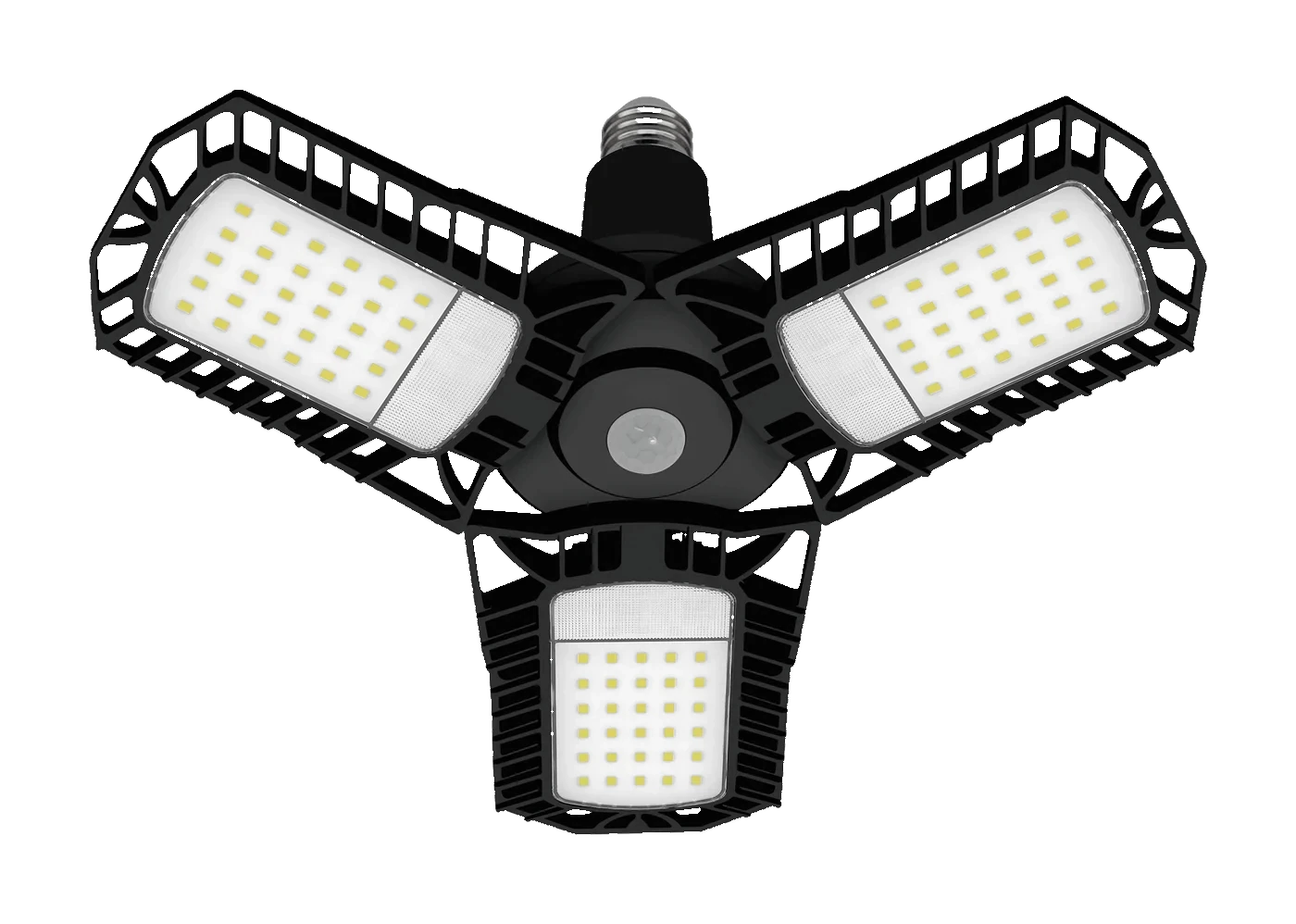

• Motion-activated 3-panel garage light (Z-JG-80AL-M): 8,000 lm, 80 W.

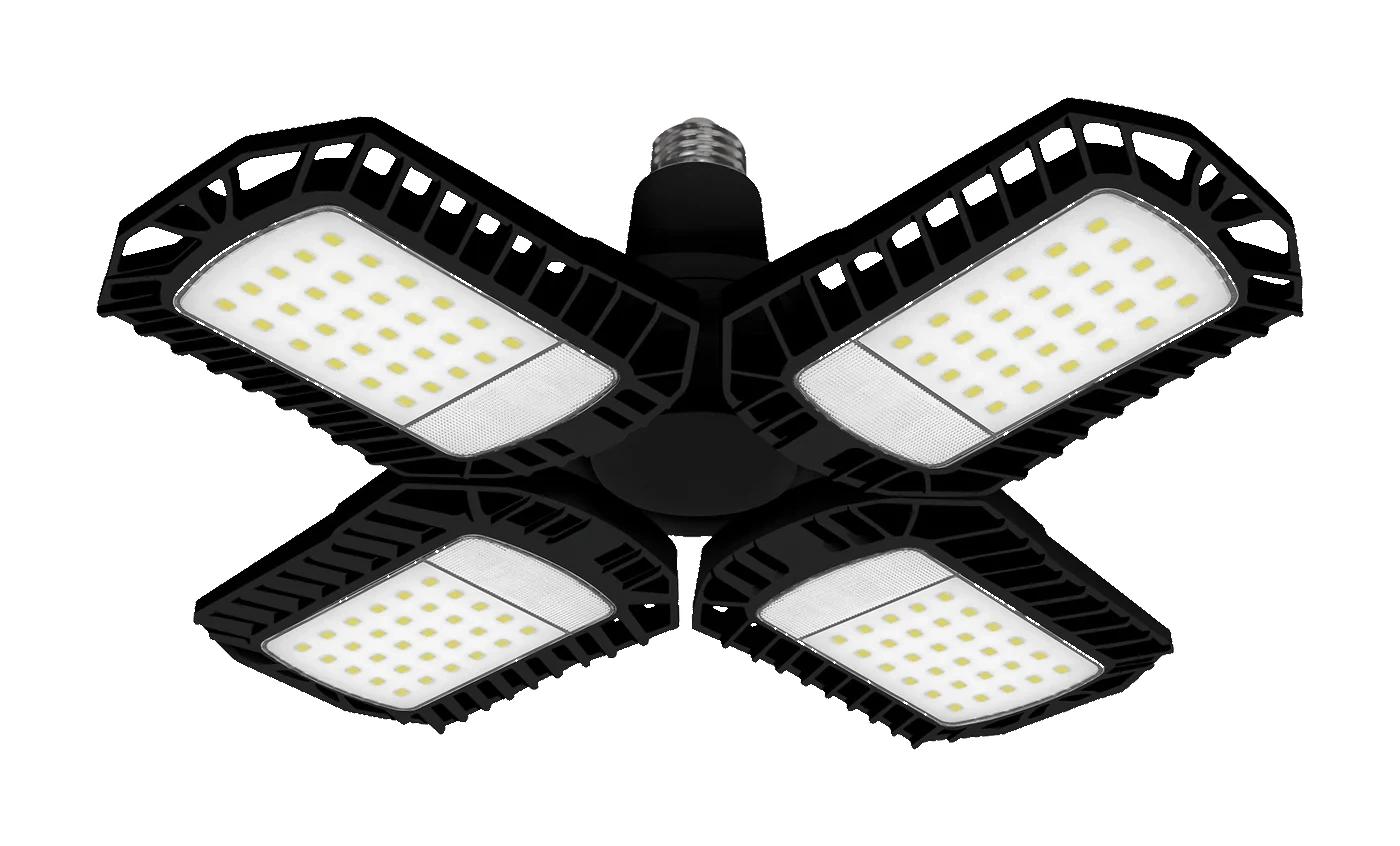

• 4-panel garage light (Z-JG-120AL): 12,000 lm, 120 W.

Taller ceilings

In a pole barn or a shop with a high ceiling, a 4 ft light may be too far from the floor to do much. A high-bay light is built to throw light down from that height, so compare one with your 4 ft plan. The Zone linear high bay is published as: hangs from chains; wide beam for tall ceilings.

How many 4 ft lights?

Work out the lumens the space needs, then divide by the lumens printed on the light you choose. The garage light guide has the numbers for 1, 2 and 3-car garages and workshops, from published IES light levels.

How to compare light across a work area

A long fixture spreads light along a line, which suits a workbench or the length of a parked car. Not every 4 ft light spreads it the same way, though. The housing, lens and tubes decide where the light falls. An open shelf, a raised garage door or you standing at the bench can block that light, even when the ceiling looks bright.

Think about the work surface, not just the floor. An overhead light gives you general light, and a separate task light can fill the shadow under a shelf. With a tube fixture, compare the fixture and the tubes you’ll put in it together. With an integrated fixture, look at the lumens for the whole unit. Counting tubes or comparing length tells you much less.

A common layout for a two-car garage is two or three rows of 4 ft lights running front to back, so the light falls on both sides of each car instead of just the roof. Over a bench, mount one fixture slightly in front of where you stand, so your head doesn’t shade the work.

Can I put LED tubes in my old fluorescent fixture?

Not solely because the tubes have the same length. The replacement lamp must match the fixture’s electrical arrangement, including ballast or conversion requirements. The Zone tube fixture’s published use of T8 LED tubes does not certify an unrelated fluorescent fixture for those lamps. No ballast compatibility list or conversion procedure is supplied here.

Compare the existing fixture label with the exact replacement instructions, or consider a complete compatible fixture. Have a licensed electrician assess any wiring changes. For screw-in options, read the panel-light guide and bulb-fit checks before assuming the same light pattern or clearance.
