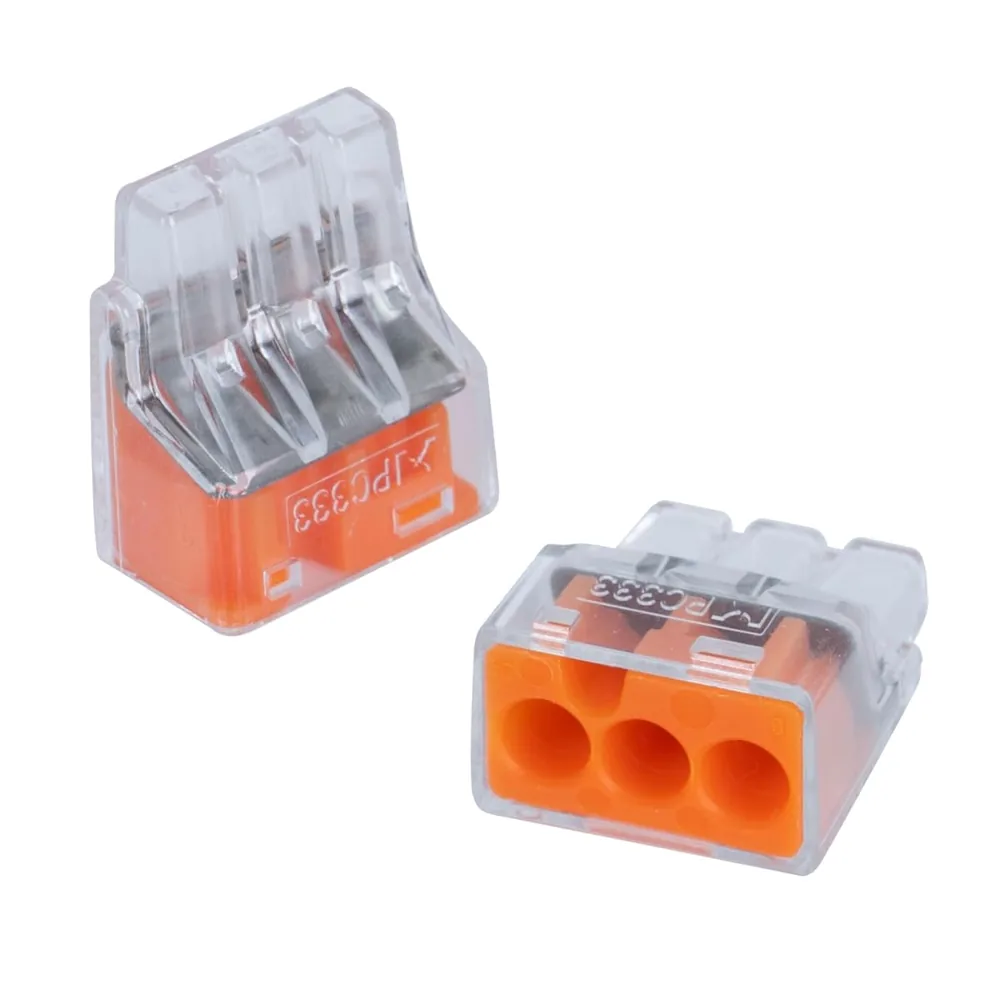

Zone 3-port push-in wire connector (PC333) — Three-port push-in wire connector.

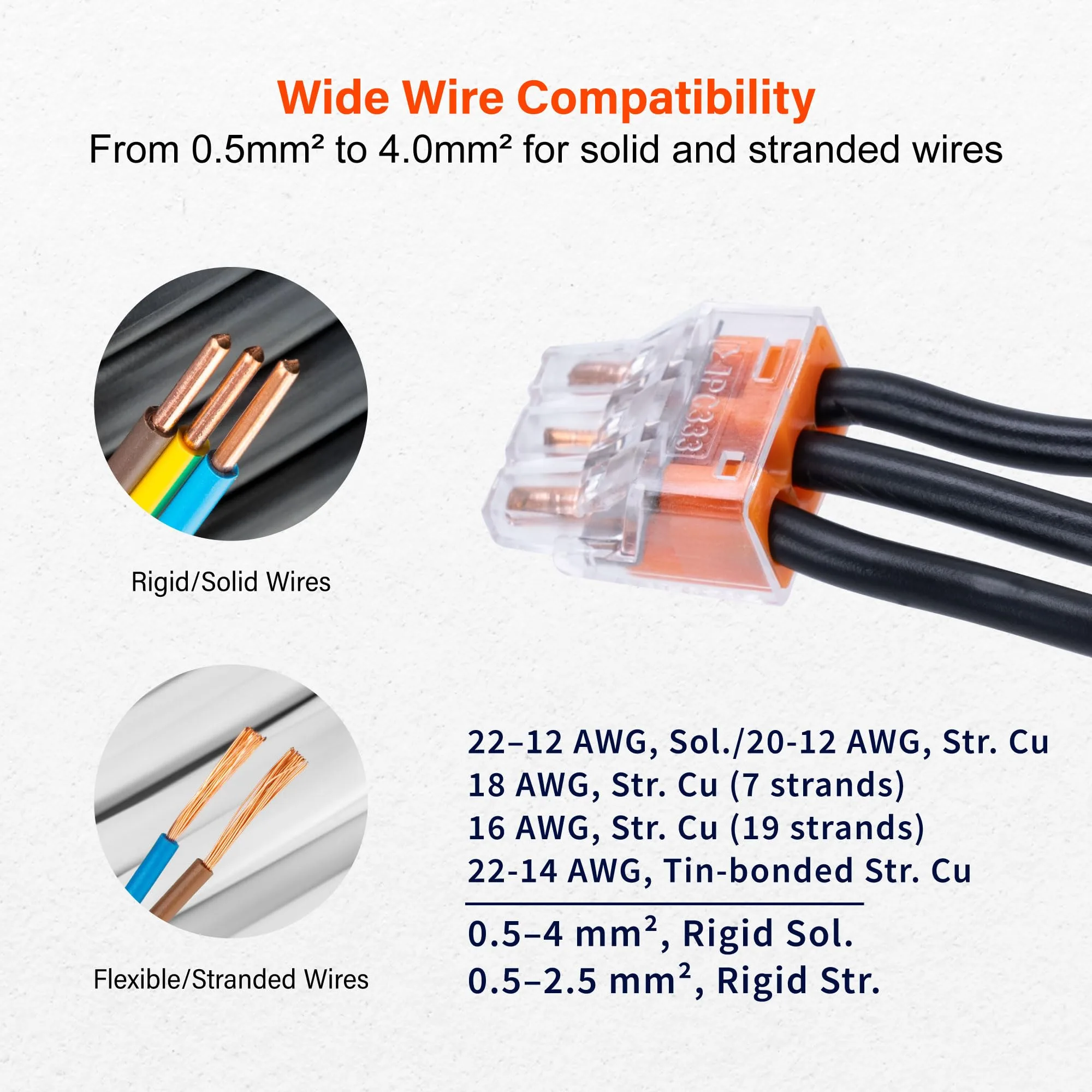

What wires it takes
| Copper conductor | Printed range |
|---|---|
| Solid copper | 22–12 AWG |
| Stranded copper | 20–12 AWG |
| Stranded copper, 7 strands | 18 AWG |
| Stranded copper, 19 strands | 16 AWG |
| Tin-bonded stranded copper | 22–14 AWG |

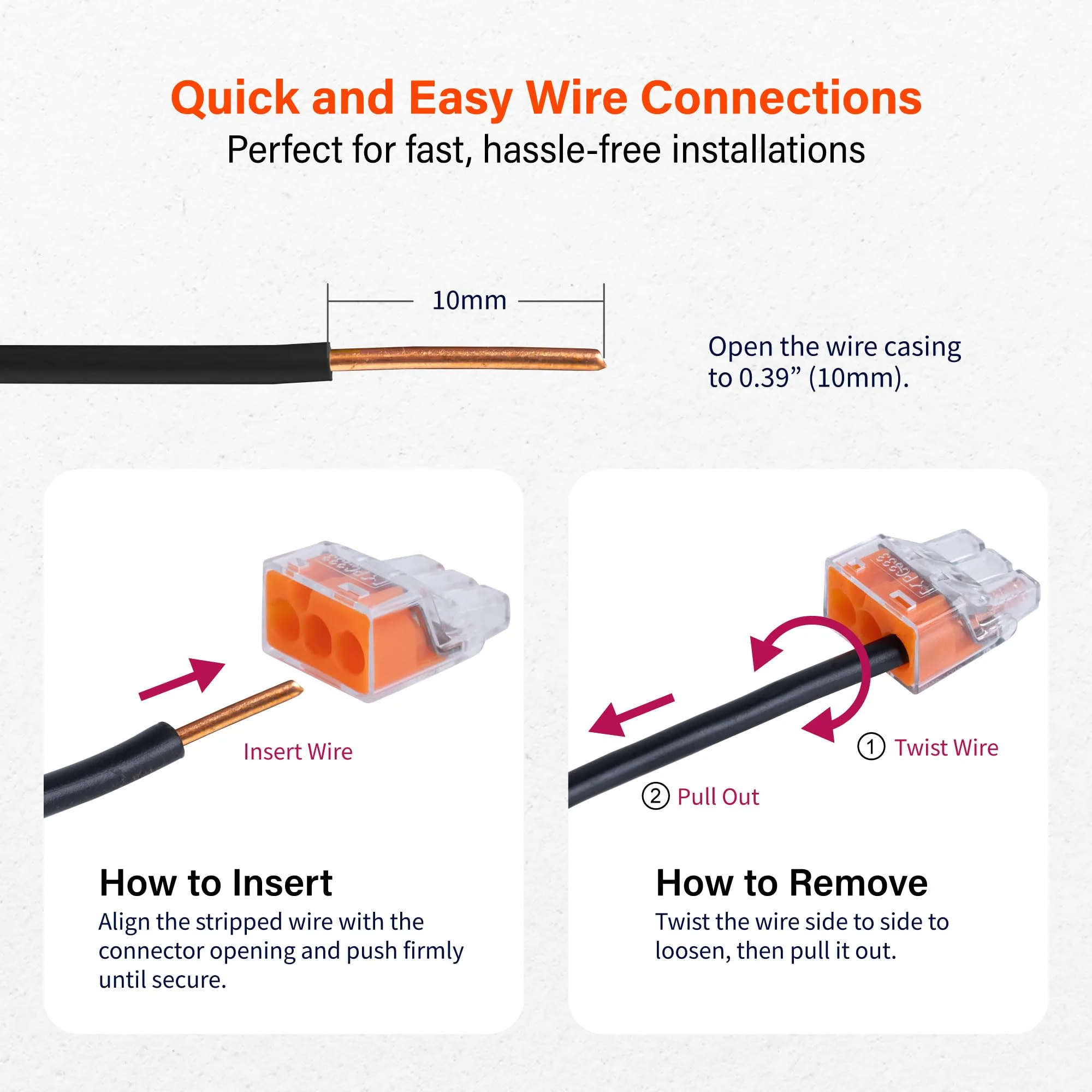

How to install
- Turn off power before installing or removing the connector.
- Strip 3/8–1/2 in (9.5–13 mm) of insulation.
- Insert the stripped conductors fully.
- Test through the test slot above the entry ports with a voltage tester.
- To remove a wire, hold it and twist alternately left and right while pulling.
- When reusing the connector, use a wire at least one size larger than the wire previously removed.
Good for
- Solid-wire building splices
- Outlets and switches
- Light fixtures
- Compact junction-box connections
Questions about the PC333
What wire sizes does the PC333 fit?
The PC333 published wire range is 22–12 AWG solid; 20–12 AWG stranded; 22–14 AWG tin-bonded stranded; 22–12 AWG.
What standard is the PC333 listed to?
The PC333 listing states UL 486C.
What conductors does the PC333 take?
Solid, stranded and tin-bonded stranded copper within the printed ranges.
Can I reuse the PC333?
When reusing it, the label says to use a wire at least one size larger than the wire previously removed.
