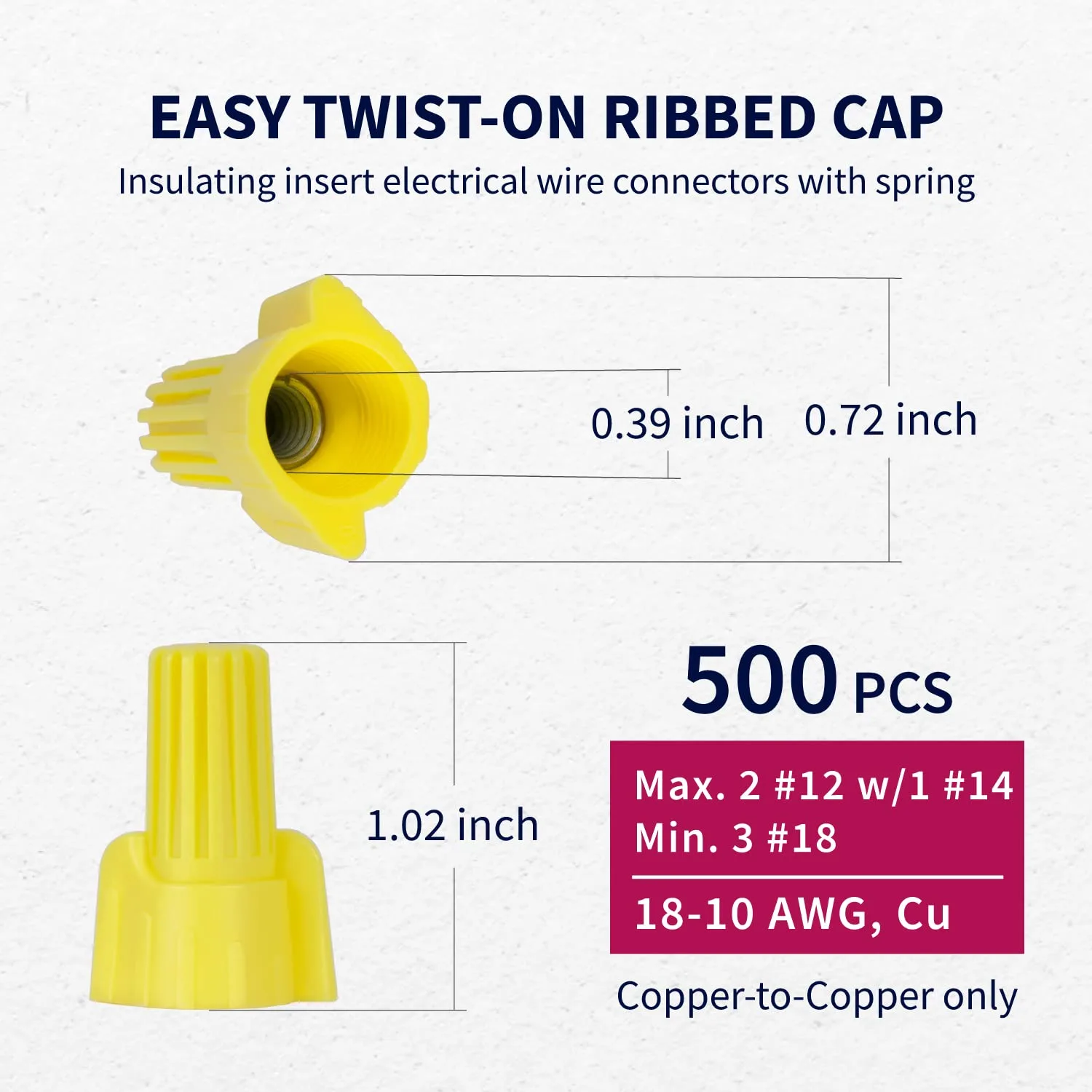

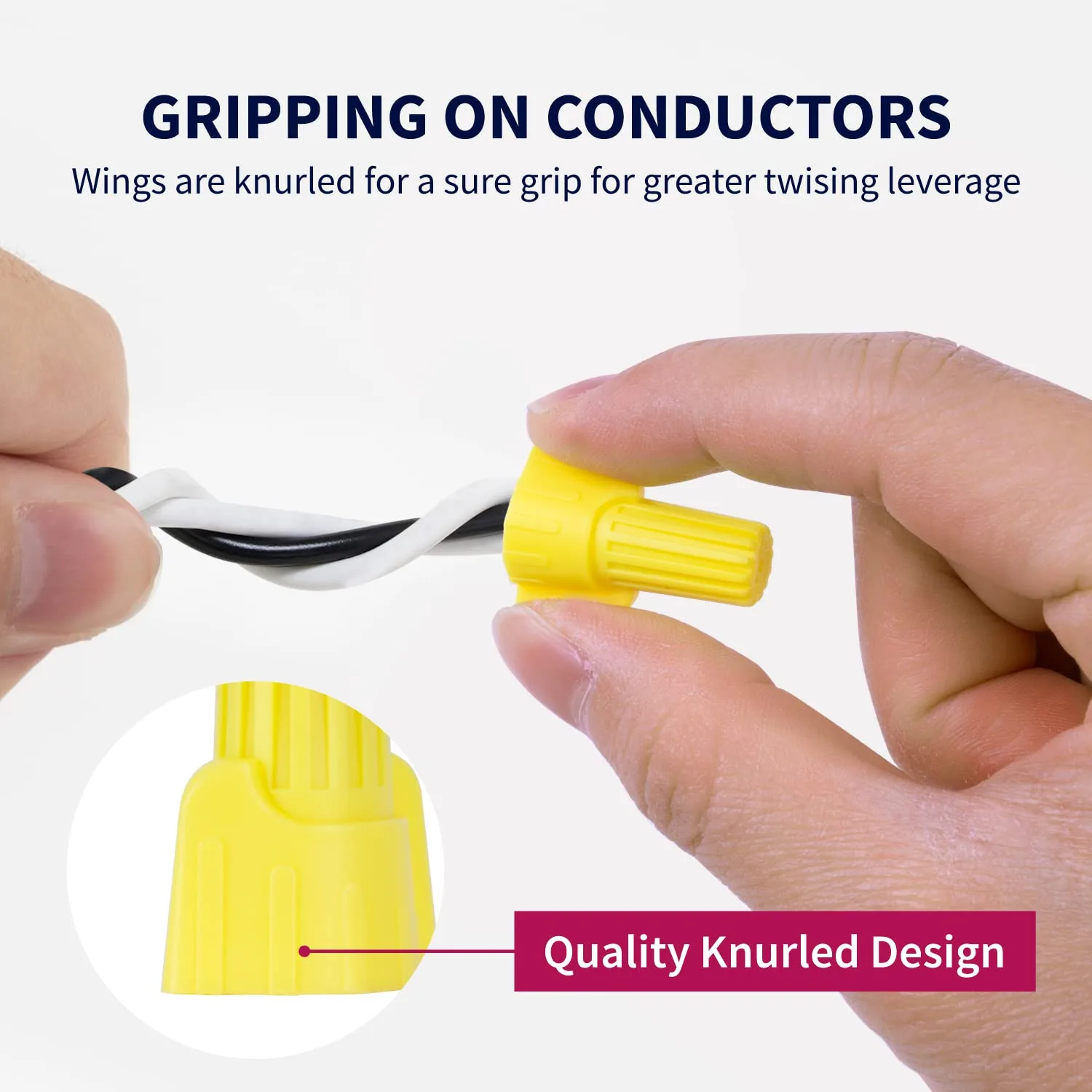

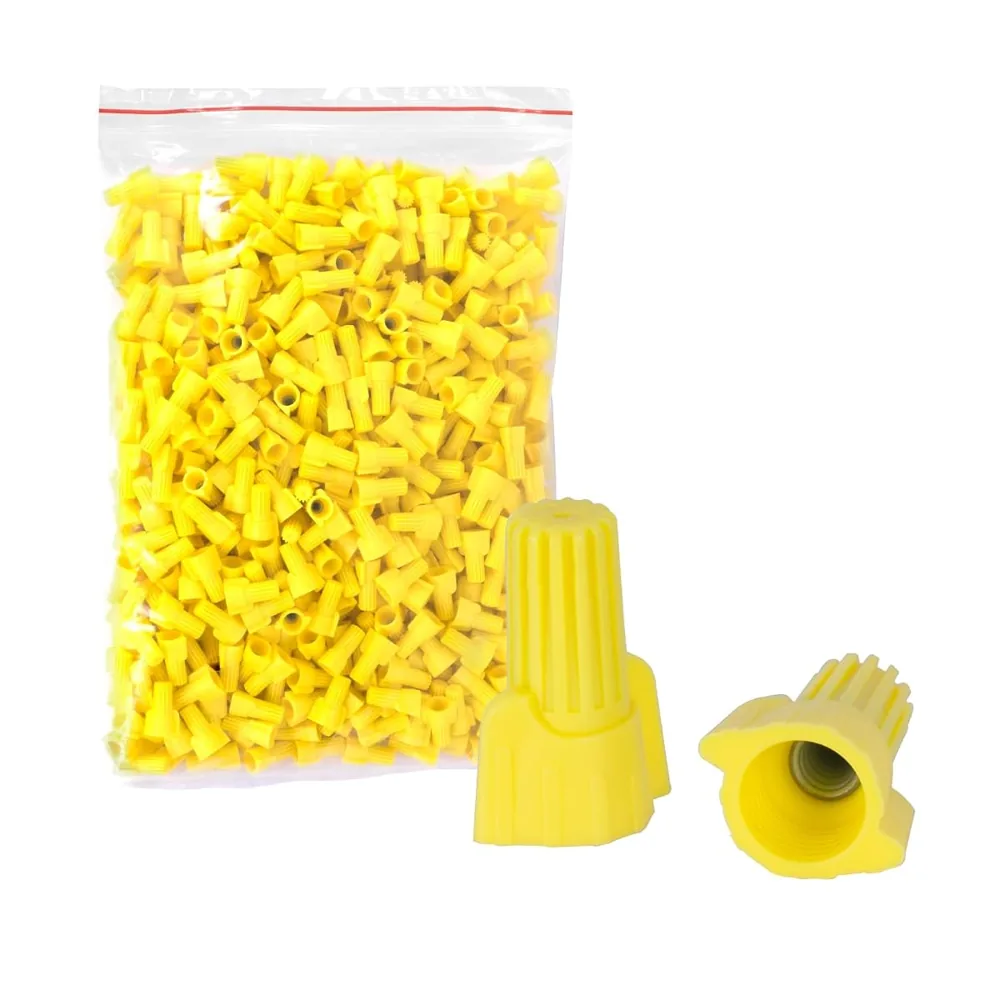

Zone Yellow winged wire nut (P11V) — Yellow winged twist-on wire connector.
What wires it takes
Pressure-type wire connector. Solid and/or stranded wire combinations:
- 1 #10
- 1 to 3 #12
- 2 or 3 #14
- 2 to 4 #16
- 2 to 4 #18
- 1 #10 with 1 #12
- 1 #10 with 1 or 2 #14
- 1 #10 with 1 or 2 #16
- 1 #10 with 1 to 3 #18
- 1 #12 with 1 or 2 #14
- 1 #12 with 1 to 3 #16
- 1 #12 with 1 to 4 #18
- 1 #12 Sol with 5 #18 Sol
- 2 #12 with 1 or 2 #18
- 2 #12 with 1 #14
- 2 #12 with 1 #16
- 1 #14 with 1 to 4 #16
- 1 #14 with 1 to 5 #18
- 2 #14 with 1 to 3 #16
- 2 #14 with 1 to 3 #18
- 3 #14 with 1 #16
- 3 #14 with 1 or 2 #18
- 1 #16 with 1 to 5 #18
- 2 #16 with 1 to 4 #18
- 3 #16 with 1 to 3 #18
- 4 #16 with 1 or 2 #18

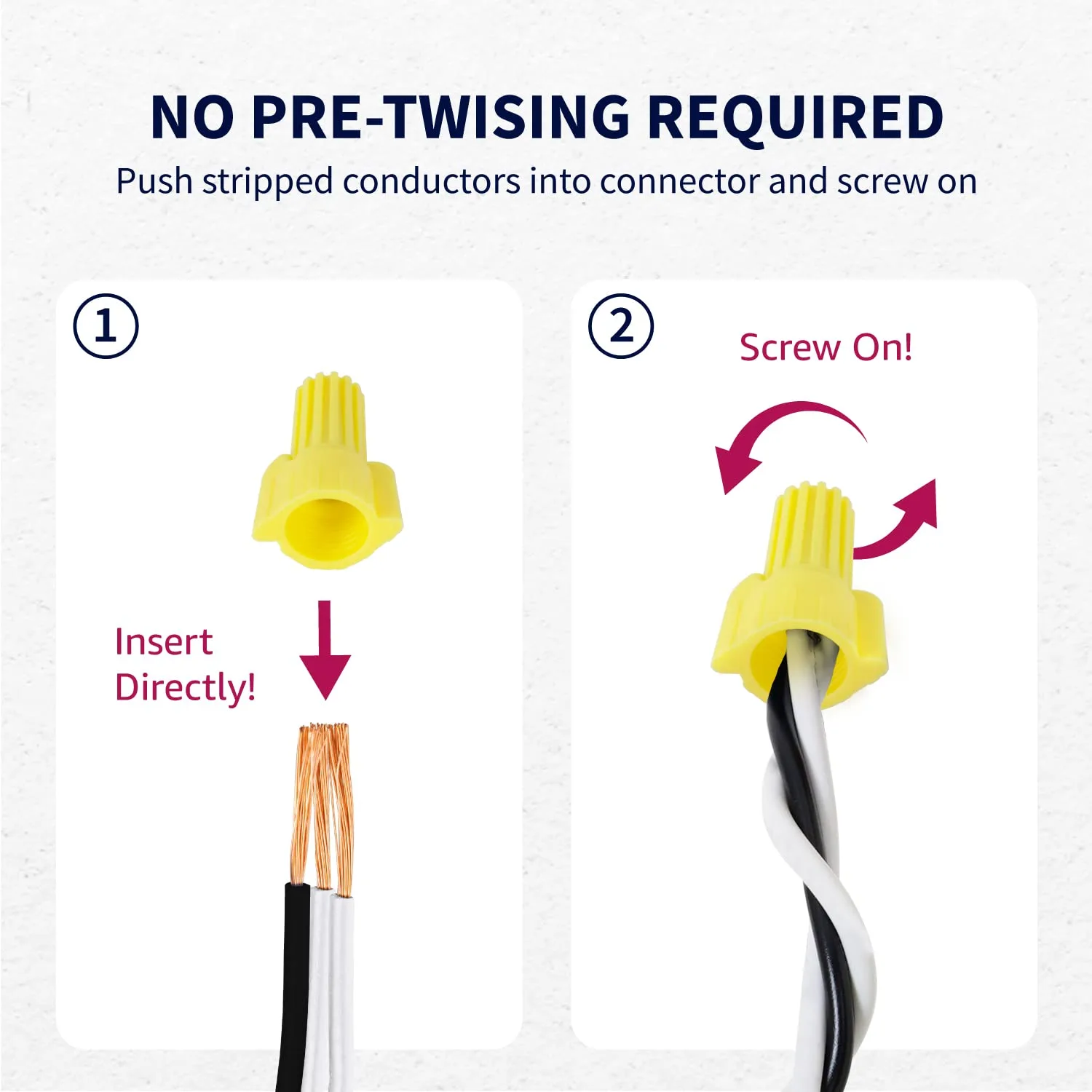

How to install
- Strip 3/8 in (9.5 mm).
- Pre-twisting unnecessary.
- Push wires in and screw on until two twists are visible in the wires.
Good for
- Lighting
- Outlets
- Basic electrical repairs
- Junction-box splices
Questions about the P11V
What wire sizes does the P11V fit?
The P11V published wire range is 18–10 AWG.
What standard is the P11V listed to?
The P11V listing states UL 486C.
What conductors does the P11V take?
Copper to copper.
Does the P11V have a combination chart?
Yes. The exact combinations printed on the P11V box are shown on this page.
