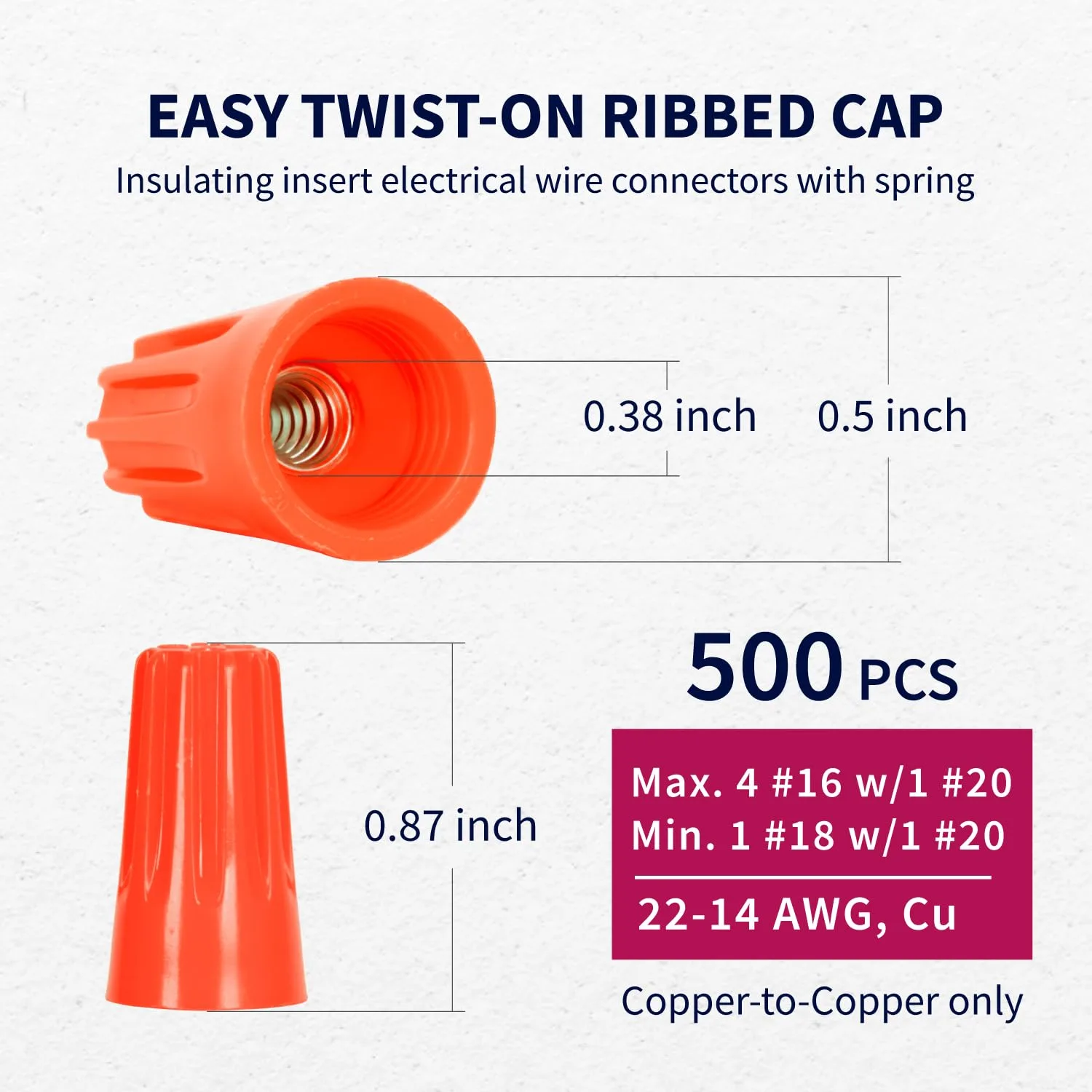

Pressure-type wire connector. Solid and/or stranded wire combinations:

600 V max

• 1 or 2 #14
• 2 or 3 #16
• 2 to 4 #18
• 1 #14 with 1 #16
• 1 #14 with 1 #16 with 1 #18
• 1 #14 with 1 or 2 #18
• 1 #14 with 1 to 3 #20 or #22
• 1 #16 with 1 or 2 #18
• 1 #16 with 1 #18 with 1 #22
• 1 #16 with 1 to 3 #20 or #22
• 1 or 2 #16 with 1 #20 with 1 #22
• 2 #16 with 1 #18
• 2 #16 with 1 or 2 #20
• 2 #16 with 1 to 3 #22
• 1 #18 with 2 to 4 #20
• 1 #18 with 3 or 4 #22
• 1 or 2 #18 with 1 #20 with 1 #22
• 2 #18 with 1 or 2 #20 or #22
• 3 #18 with 1 #20 or #22

300 V max

• 4 #16
• 5 #18
• 3 to 5 #20
• 5 #22 Sol
• 5 #22 Str
• 3 #22 Sol with 2 #22 Str
• 1 #14 with 1 #16 with 1 #18
• 1 #14 with 2 #16
• 1 #14 with 3 #18
• 1 #14 with 4 #20
• 2 #14 with 1 #18
• 2 #14 with 1 to 3 #20 or #22
• 1 #16 with 4 #18
• 2 #16 with 2 or 3 #18
• 2 #16 with 3 #20
• 3 #16 with 1 #18
• 3 #16 with 1 or 2 #20 or #22
• 4 #16 with 1 #20 or #22
• 1 #18 with 1 #20
• 1 #18 with 5 #22
• 2 #18 with 3 #22
• 3 #18 with 2 #20 or #22
• 4 #18 with 1 #20 or #22
• 1 #20 with 4 #22
• 2 #20 with 2 or 3 #22
• 3 #20 with 1 or 2 #22
• 4 #20 with 1 #22
