Zone · Wire connectors · Twist-on wire nuts · P12C

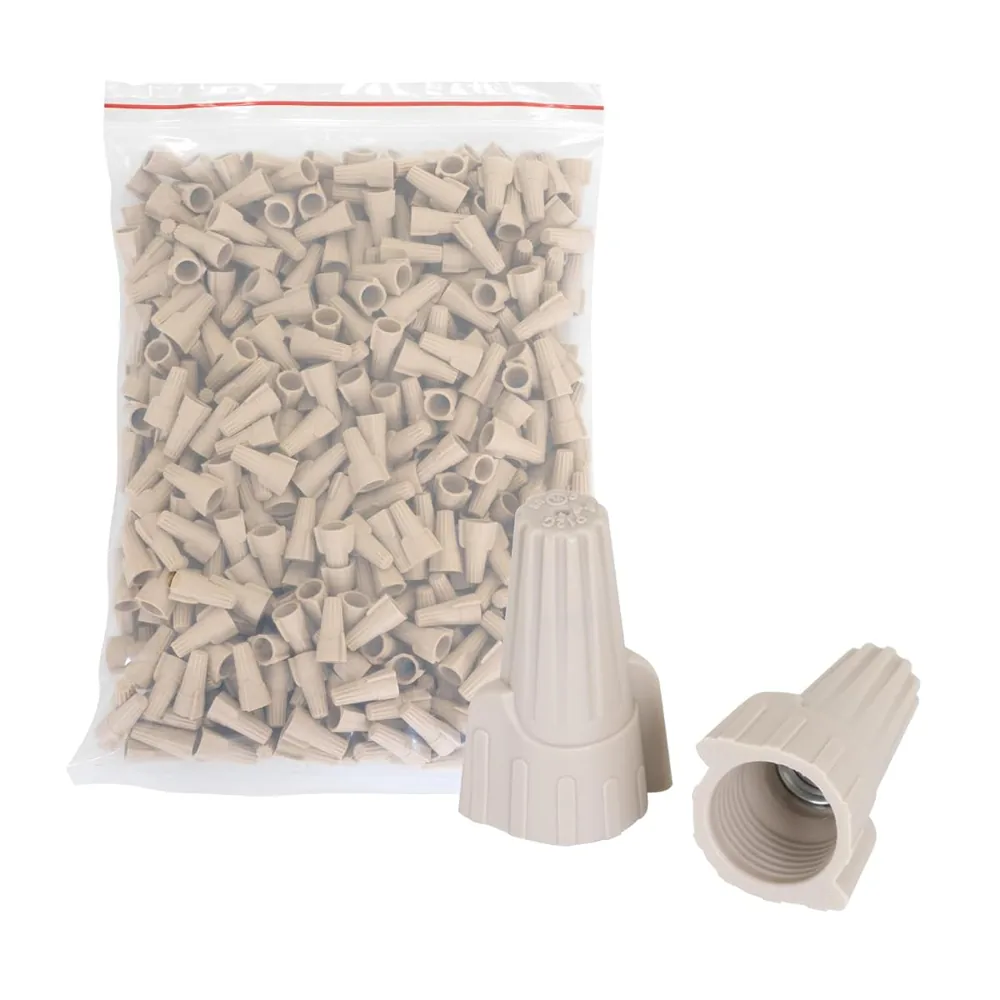

Zone Tan winged wire nut (P12C) — Tan winged twist-on wire connector

Zone Tan winged wire nut (P12C) — Tan winged twist-on wire connector.

What wires it takes

Pressure-type wire connector. Solid and/or stranded wire combinations:

  • 1 to 3 #10
  • 1 to 4 #12
  • 1 to 5 #14
  • 2 to 6 #20, #18 or #16
  • 3 to 6 #22
  • 1 #10 with 1 #8
  • 1 #12 with 1 or 2 #10
  • 1 #12 with 1 #8
  • 2 #12 with 1 #10
  • 1 #14 with 1 or 2 #12 with 1 #10
  • 1 #14 with 1 to 3 #12
  • 1 #14 with 1 or 2 #10
  • 2 #14 with 1 #12 with 1 #10
  • 2 #14 with 1 or 2 #12
  • 2 #14 with 1 or 2 #10
  • 2 #14 with 1 #8
  • 3 #14 with 1 #12 or #10
  • 3 #14 with 2 #12
  • 4 #14 with 1 #12 or #10
  • 1 #16 with 1 or 2 #14 with 1 #12
  • 1 #16 with 1 or 2 #14 with 1 #10
  • 1 #16 with 1 to 4 #14 or #12
  • 1 #16 with 1 or 2 #10
  • 1 #16 with 1 #12 with 1 #10
  • 2 #16 with 1 #14 with 1 or 2 #12
  • 2 #16 with 2 #14 with 1 #12
  • 2 #16 with 1 #12 with 1 #10
  • 3 #16 with 1 #14 with 1 #12 or #10
  • 4 #16 with 1 #12 with 1 #10
  • 2 #16 with 1 to 4 #14
  • 2 #16 with 1 to 3 #12
  • 2 #16 with 1 or 2 #10
  • 3 #16 with 1 to 3 #14
  • 3 #16 with 1 or 2 #12 or #10
  • 4 #16 with 1 or 2 #14 or #12
  • 4 #16 with 1 #10
  • 5 #16 with 1 #14
  • 5 #16 with 1 #10
  • 1 #18 with 1 to 4 #16, #14 or #12
  • 1 #18 with 1 or 2 #10
  • 2 #18 with 1 to 4 #16 or #14
  • 2 #18 with 1 or 2 #10
  • 3 #18 with 1 to 3 #16, #14 or #12
  • 3 #18 with 1 or 2 #10
  • 4 #18 with 1 or 2 #16, #14 or #12
  • 4 #18 with 1 #10
  • 5 #18 with 1 #16 or #14
  • 1 #20 with 1 to 4 #18, #16 or #14
  • 2 #20 with 1 to 3 #18, #16 or #14
  • 3 #20 with 1 or 2 #18, #16 or #14
  • 4 #20 with 1 or 2 #18, #16 or #14
  • 1 #22 with 1 to 5 #20, #18 or #16
  • 2 #22 with 1 to 4 #20, #18 or #16
  • 3 #22 with 1 to 3 #20, #18 or #16
  • 4 #22 with 1 or 2 #20, #18 or #16
  • 1 #22 with 1 #20 with 1 or 2 #16
  • 1 #22 with 1 #18 with 1 #16

Check a wire mix in the connector picker →

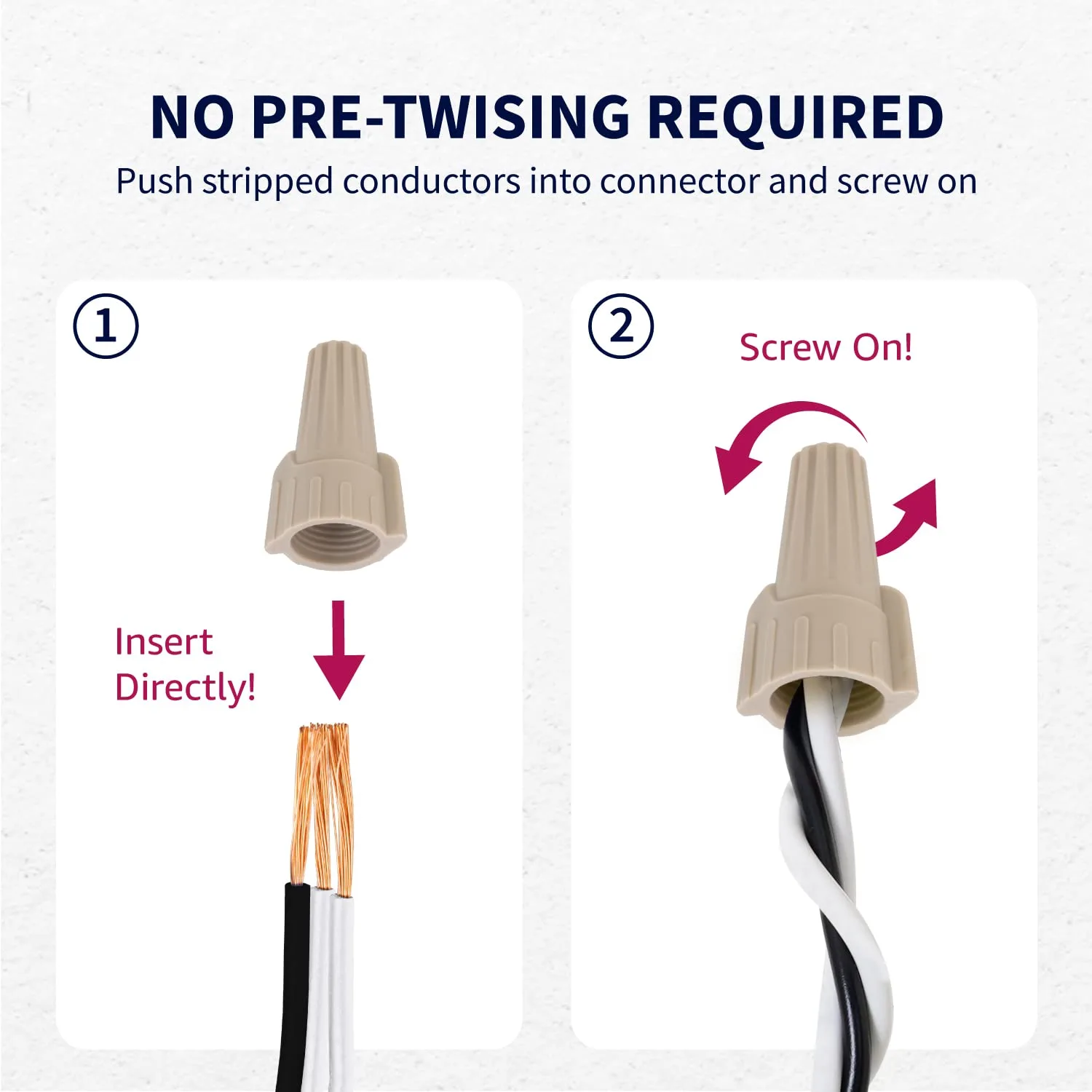

How to install

  1. Turn off power before installing or removing connectors.
  2. Strip wires 1/2" (12.7 mm).
  3. Pre-twisting unnecessary, hold stripped wires together with ends even. Lead stranded wires slightly.
  4. Align any frayed strands or conductors.
  5. Push wires into connector and screw on until two twists are visible in wires.

Good for

  • Light fixtures
  • Outlets and switches
  • Ceiling fans
  • Junction-box splices and general home and repair wiring

Questions about the P12C

What wire sizes does the P12C fit?

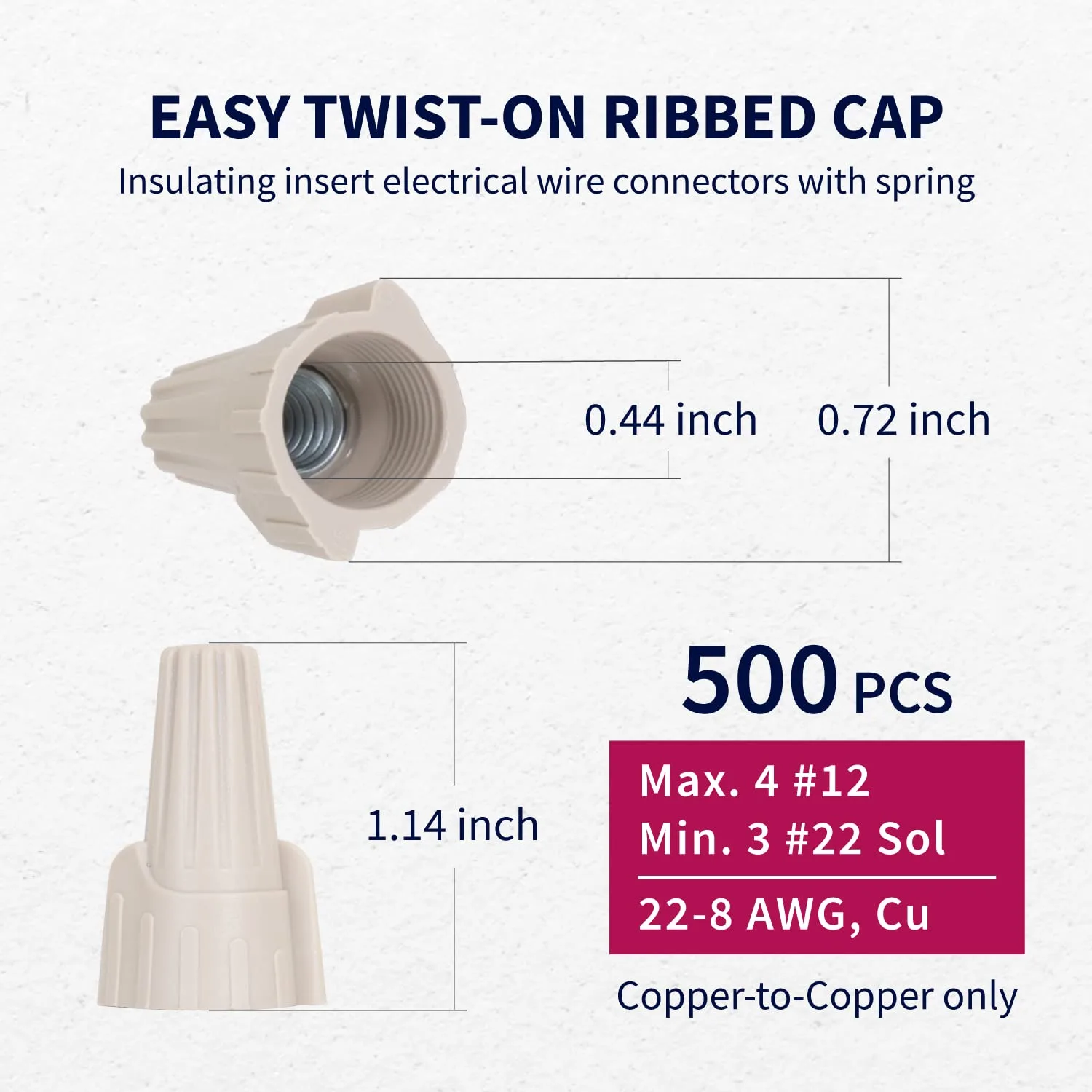

The P12C published wire range is 22–8 AWG.

What standard is the P12C listed to?

The P12C listing states UL 486C.

What conductors does the P12C take?

Copper to copper.

Does the P12C have a combination chart?

Yes. The exact combinations printed on the P12C box are shown on this page.
