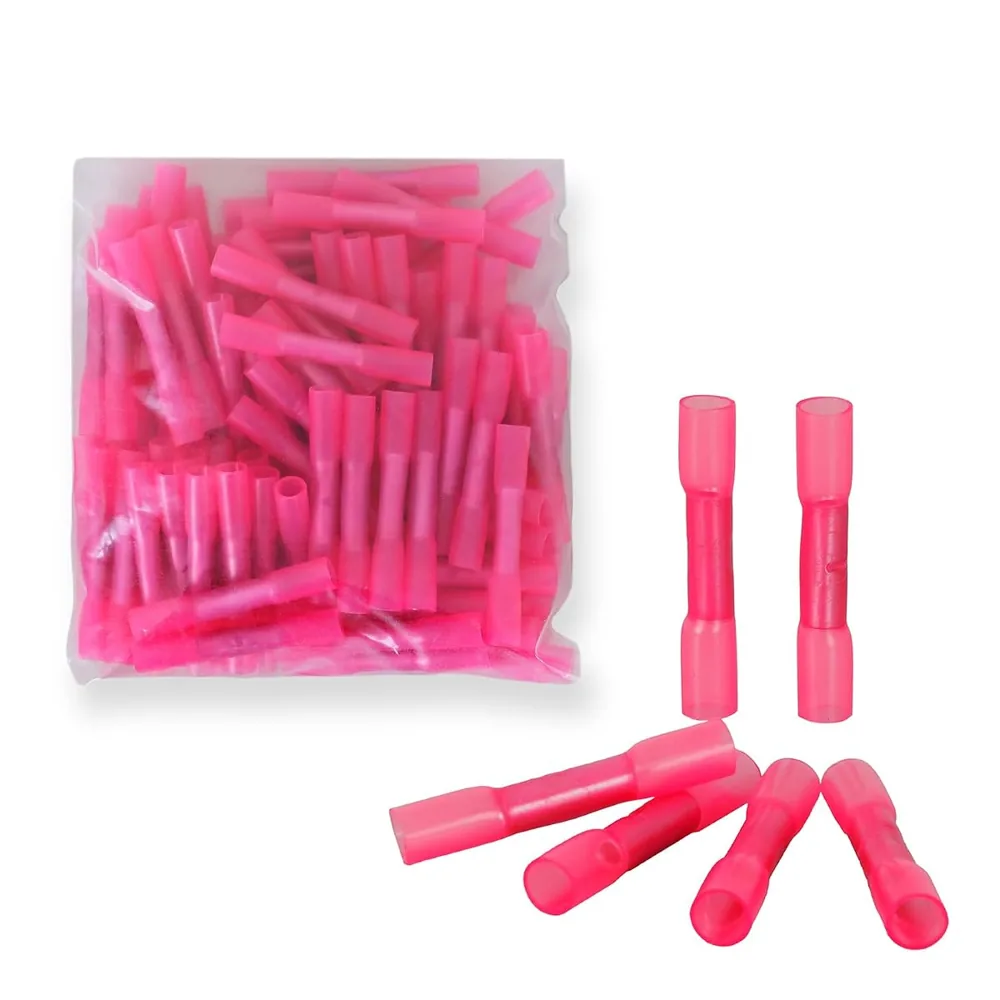

Zone Heat-shrink butt connector (BCT1H-100) — Red heat-shrink butt connector.
What wires it takes
The published wire range is 22–16 AWG / 0.5–1.5 mm². Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Automotive repair
- Boat and marine wiring
- Trailer and brake wiring
- RV or van builds
Questions about the BCT1H-100
What wire sizes does the BCT1H-100 fit?
The BCT1H-100 published wire range is 22–16 AWG / 0.5–1.5 mm².
What standard is the BCT1H-100 listed to?
The BCT1H-100 listing states UL 486C.
What conductors does the BCT1H-100 take?
Copper only.
What insulation does the BCT1H-100 use?
The BCT1H-100 uses dual-wall polyolefin adhesive heat-shrink.
