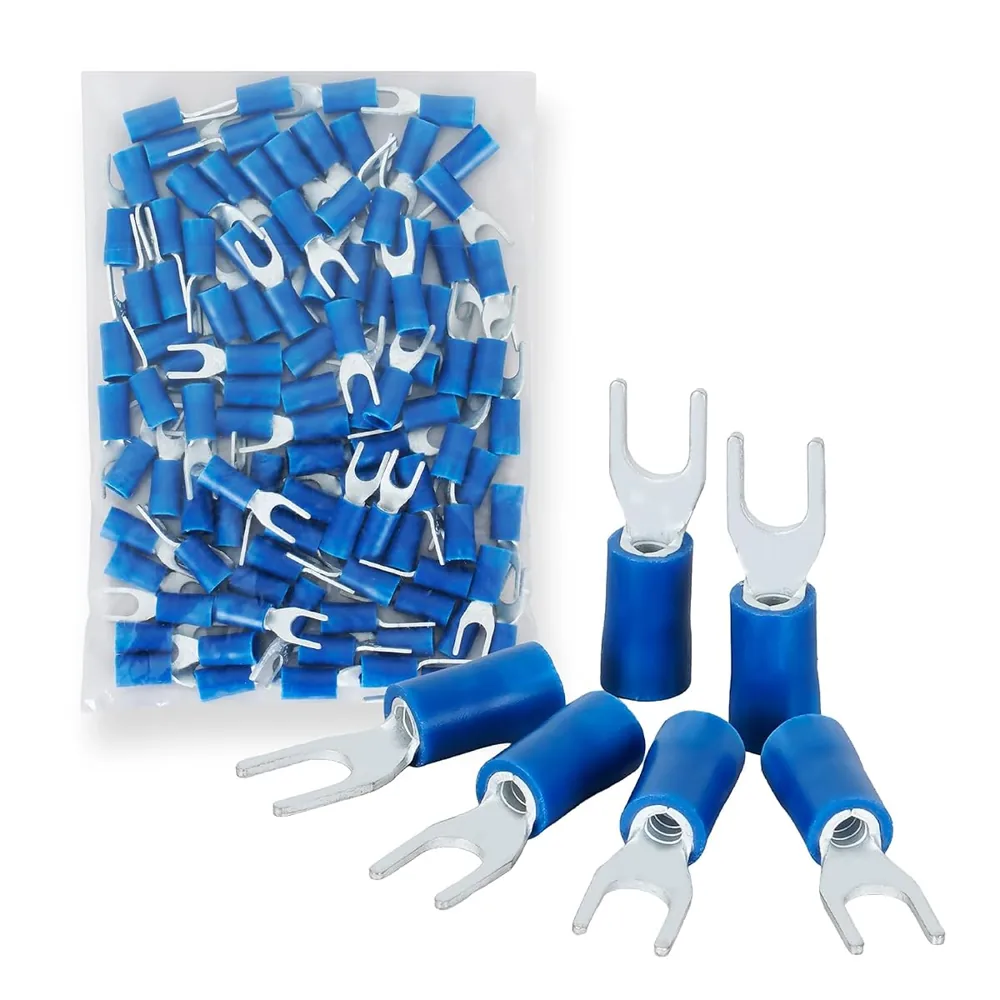

Zone Fork terminal, #8 stud (S2-4SV-100) — Blue insulated fork terminal.
What wires it takes
The published wire range is 16–14 AWG / 1.5–2.5 mm². Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Switch panels
- Fuse blocks and relays
- Barrier strips
- Dry-location equipment terminals
Questions about the S2-4SV-100
What wire sizes does the S2-4SV-100 fit?
The S2-4SV-100 published wire range is 16–14 AWG / 1.5–2.5 mm².
What standard is the S2-4SV-100 listed to?
The S2-4SV-100 listing states UL 486A-B.
What conductors does the S2-4SV-100 take?
Copper only.
What stud size fits the S2-4SV-100?
The S2-4SV-100 fits a #8 stud.
