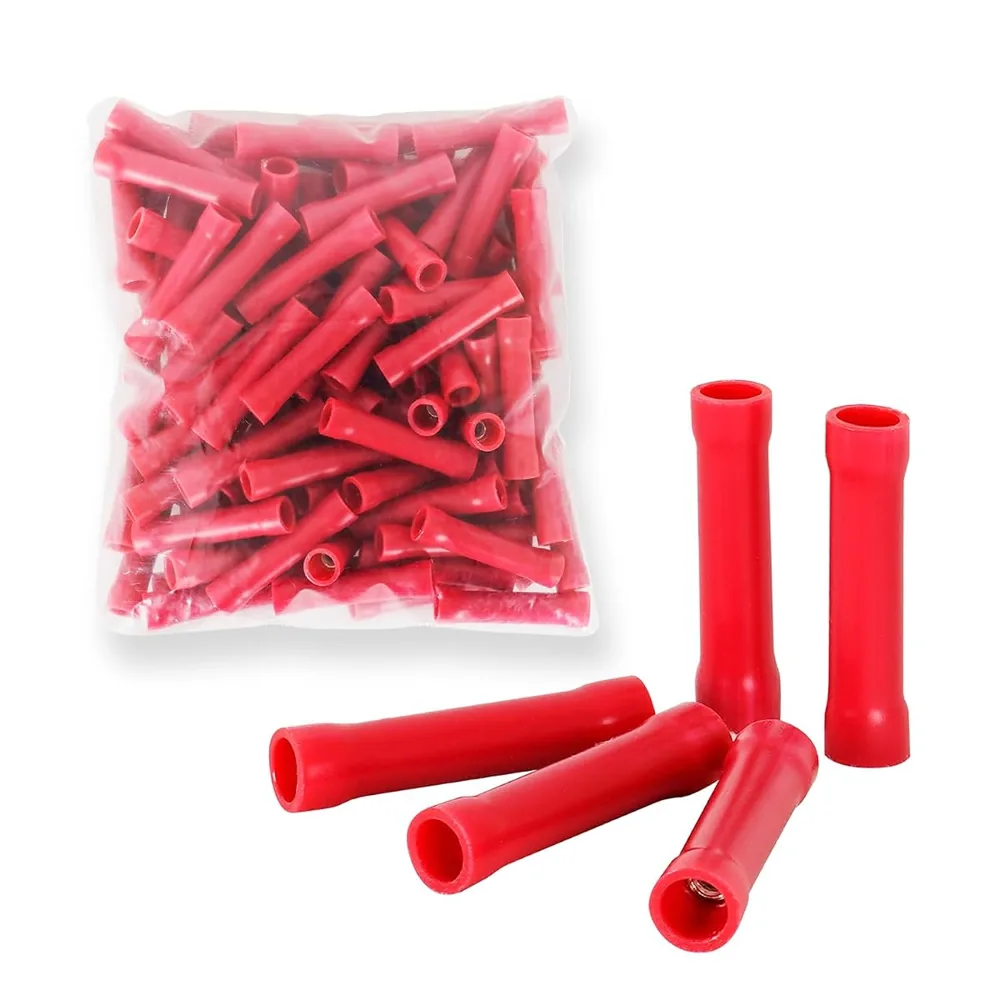

Zone Vinyl butt connector (BCT1V-100) — Red vinyl-insulated butt connector.
What wires it takes
The published wire range is 22–16 AWG. Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Indoor wiring repairs
- Extending a wire run
- Dry-location automotive splices
- Dry-location equipment splices
Questions about the BCT1V-100
What wire sizes does the BCT1V-100 fit?
The BCT1V-100 published wire range is 22–16 AWG.
What standard is the BCT1V-100 listed to?
The BCT1V-100 listing states UL 486C.
What conductors does the BCT1V-100 take?
Copper only.
What insulation does the BCT1V-100 use?
The BCT1V-100 uses vinyl (pvc), not heat-shrink.
