Zone · Wire connectors · Crimp terminals: butt connectors, fork and ring terminals · S2-4MBH-100

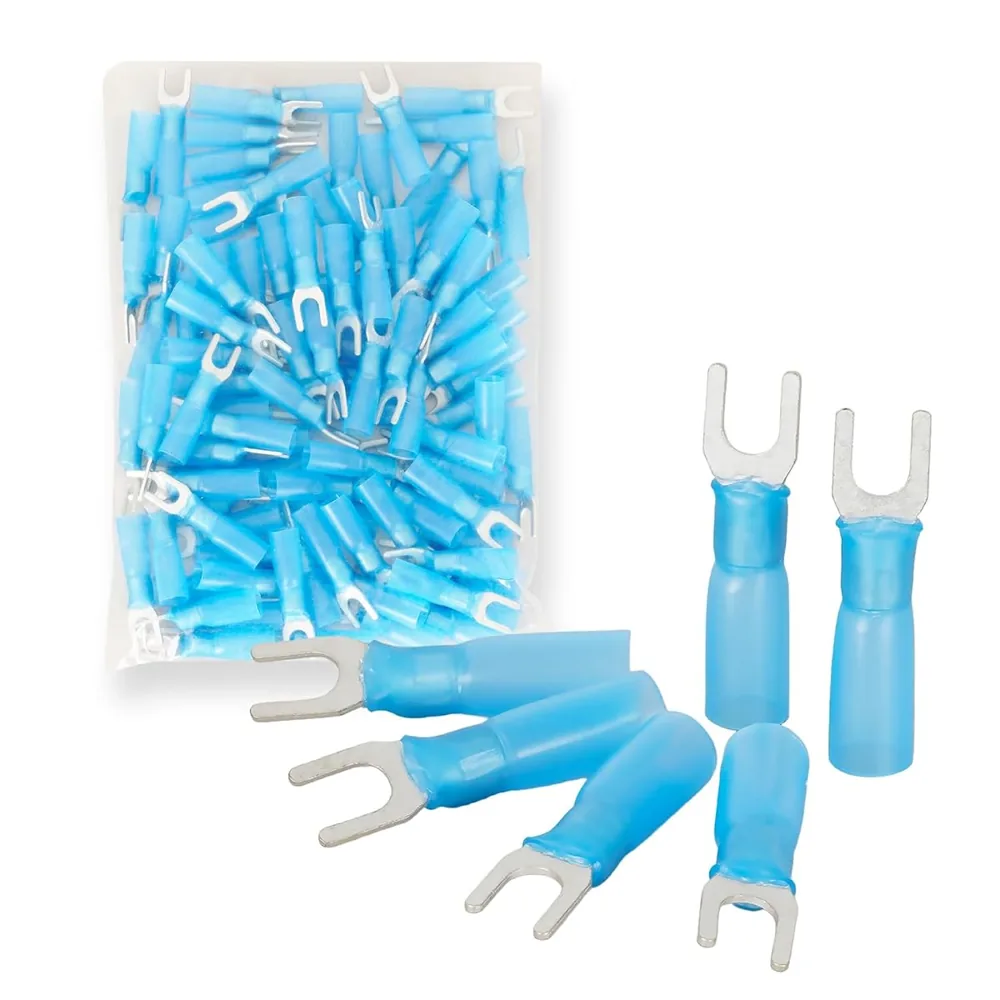

Zone Heat-shrink fork terminal, #8 stud (S2-4MBH-100) — Heat-shrink fork terminal.
What wires it takes
The published wire range is 16–14 AWG. Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Switch panels
- Fuse blocks
- Barrier strips and relays
- Marine, automotive and outdoor panels
Questions about the S2-4MBH-100
What wire sizes does the S2-4MBH-100 fit?
The S2-4MBH-100 published wire range is 16–14 AWG.
What standard is the S2-4MBH-100 listed to?
The S2-4MBH-100 listing states UL 486A-B.
What conductors does the S2-4MBH-100 take?
Copper only.
What stud size fits the S2-4MBH-100?
The S2-4MBH-100 fits a #8 stud.
