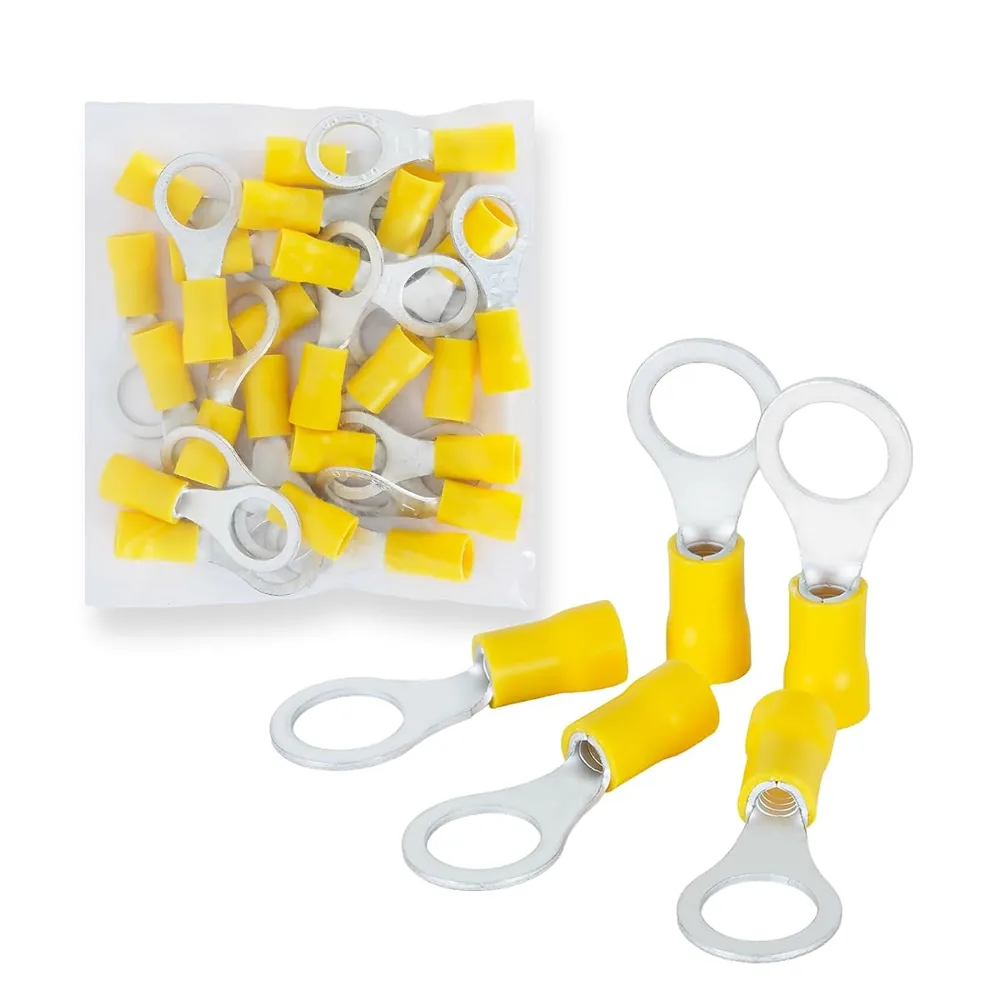

Zone Ring terminal, 3/8 in stud (R5-10V-25) — Insulated ring terminal, 3/8 inch stud.
What wires it takes
The published wire range is 12–10 AWG / 4–6 mm². Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Battery and ground posts
- Bus bars and terminal strips
- Alternators
- Inverters
Questions about the R5-10V-25
What wire sizes does the R5-10V-25 fit?
The R5-10V-25 published wire range is 12–10 AWG / 4–6 mm².
What standard is the R5-10V-25 listed to?
The R5-10V-25 listing states UL 486A-B.
What conductors does the R5-10V-25 take?
Copper only.
What stud size fits the R5-10V-25?
The R5-10V-25 fits a 3/8 in stud.
