Zone · Wire connectors · Crimp terminals: butt connectors, fork and ring terminals · R1-4SV-100

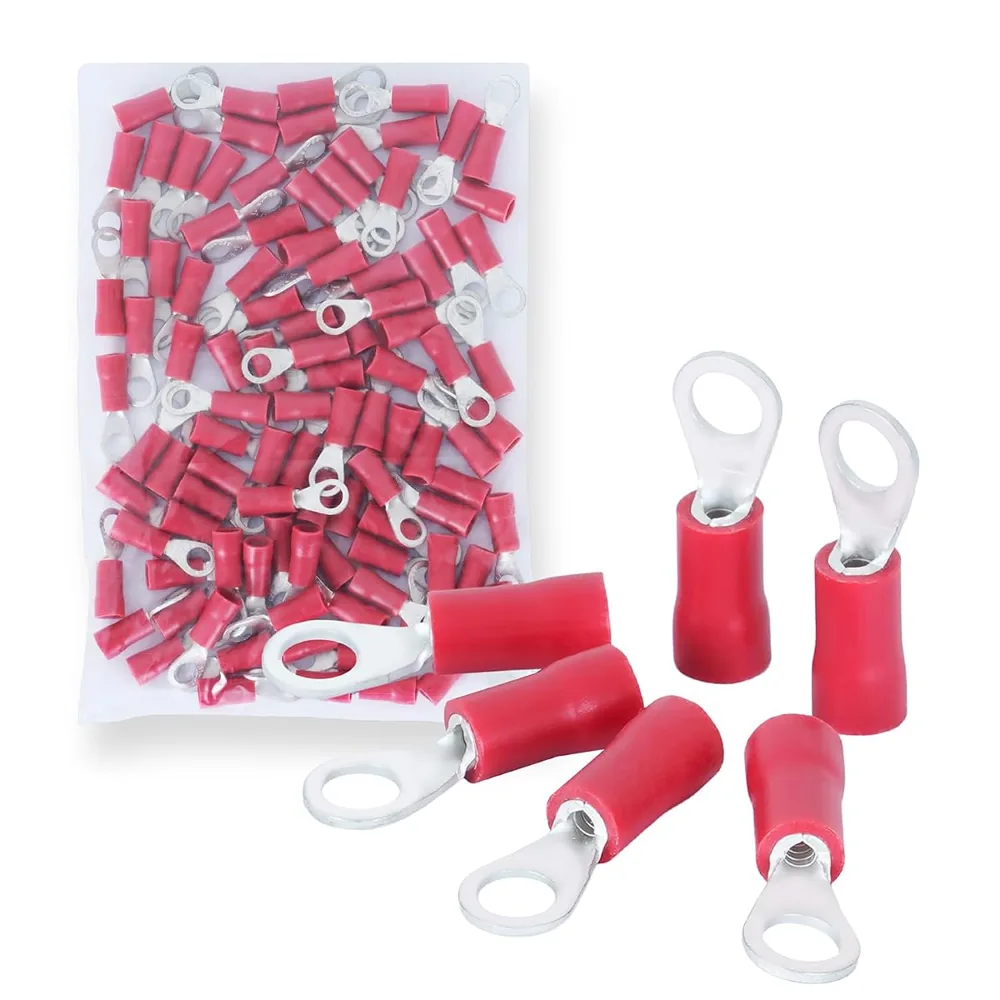

Zone Ring terminal, #8 stud (R1-4SV-100) — Insulated ring terminal.
What wires it takes
The published wire range is 22–16 AWG / 0.5–1.5 mm². Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Battery and ground posts
- Bus bars and terminal strips
- Alternators
- Inverters
Questions about the R1-4SV-100
What wire sizes does the R1-4SV-100 fit?
The R1-4SV-100 published wire range is 22–16 AWG / 0.5–1.5 mm².
What standard is the R1-4SV-100 listed to?
The R1-4SV-100 listing states UL 486A-B.
What conductors does the R1-4SV-100 take?
Copper only.
What stud size fits the R1-4SV-100?
The R1-4SV-100 fits a #8 stud.
