Zone · Wire connectors · Crimp terminals: butt connectors, fork and ring terminals · R1-5LBH

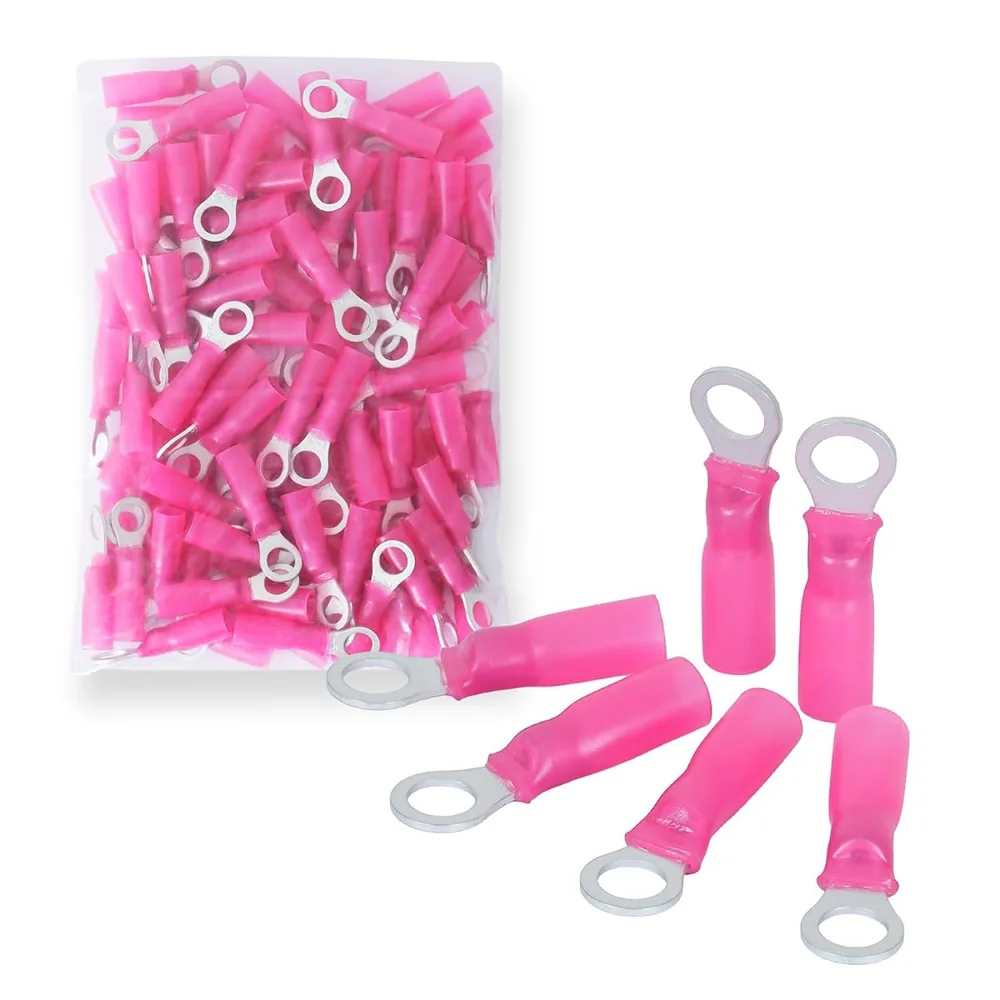

Zone Heat-shrink ring terminal, #10 stud (R1-5LBH) — Heat-shrink ring terminal.
What wires it takes
The published wire range is 22–16 AWG / 0.5–1.5 mm². Zone has not published a wire-combination chart for this part, so this page lists the range only. For parts with a full chart, see the connector picker.
Good for
- Marine wiring
- Trailer and RV grounds
- Solar and battery banks
- Bus bars and terminal strips
Questions about the R1-5LBH
What wire sizes does the R1-5LBH fit?
The R1-5LBH published wire range is 22–16 AWG / 0.5–1.5 mm².
What standard is the R1-5LBH listed to?
The R1-5LBH listing states UL 486A-B.
What conductors does the R1-5LBH take?
Copper only.
What stud size fits the R1-5LBH?
The R1-5LBH fits a #10 stud.
Other parts in this family
- Heat-shrink butt connector (BCT2H-100) — 16–14 AWG
- Heat-shrink butt connector (BCT2H-200) — 16–14 AWG
- Heat-shrink butt connector (BCT1H-100) — 22–16 AWG
- Vinyl butt connector (BCT1V-100) — 22–16 AWG
- Heat-shrink fork terminal, #8 stud (S2-4MBH-100) — 16–14 AWG
- Fork terminal, #8 stud (S2-4SV-100) — 16–14 AWG
- Fork terminal, #8 stud, heavy duty (S8-4BV-25) — 8 AWG
- Ring terminal, #8 stud (R1-4SV-100) — 22–16 AWG
- Ring terminal, 3/8 in stud (R5-10V-25) — 12–10 AWG
